All stock codes associated to this product
ArcherT4UPlus, Archer T4U Plus, NWTLARCHERT4UPLUS, NWTL-ARCHERT4UPLUS, ARCHER T4U PLUS, 5042050, II42131, ARCHER-T4UPLUS, 6935364072636

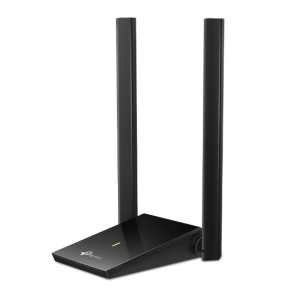

TP-Link Archer T4U Plus AC1300 Dual Antennas High-Gain Wireless USB
Adapter
Overview
- Ultra-Fast Wi-Fi 1300Mbps wireless speeds (400Mpbs on the 2.4GHz band and
867Mbps on the 5GHz band) with support for the next generation 802.11ac Wi-Fi
standard
- Dual Band Wireless - 2.4GHz and 5GHz bands for flexible
connectivity
- Dual High-Gain antennas Improved range, signal quality and transmission
performance
- MU-MIMO Delivers highly efficient wireless connection
- Super Speed USB 3.0 Port - Up to 10x faster transfer speeds than USB
2.0
- Adjustable, Multi-Directional Antenna - Enable flexible deployment for the
best reception
Specifications
|
HARDWARE
FEATURES |
|
Interface |
USB
3.0 |
|
LED |
Status |
|
Dimensions
( W x D x H ) |
84
x 156.3 x 19.2 mm (3.3 x 6.2 x 0.76 in) |
|
Antenna |
2x
External 5 dBi High Gain Antennas |
|
WIRELESS
FEATURES |
|
Wireless
Standards |
IEEE
802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz |
|
Signal
Rate |
5
GHz: |
|
11ac:
Up to 867 Mbps(dynamic) |
|
11n:
Up to 300 Mbps(dynamic) |
|
11a:
Up to 54 Mbps(dynamic) |
|
2.4
GHz: |
|
11n:
Up to 400 Mbps(dynamic) |
|
11g:
Up to 54 Mbps(dynamic) |
|
11b:
Up to 11 Mbps(dynamic) |
|
Reception
Sensitivity |
5
GHz: |
|
11ac
VHT80: -62dBm |
|
11ac
VHT40: -65dBm |
|
11ac
VHT20: -69dBm |
|
11n
HT40: -71dBm |
|
11n
HT20: -74dBm |
|
11a
54Mbps: -77dBm |
|
2.4
GHz: |
|
11n
HT40: -70dBm |
|
11n
HT20: -72dBm |
|
11g
54Mbps: -75dBm |
|
11b
11Mbps: -87dBm |
|
Transmit
Power |
5
GHz: 20dBm(FCC) / 20dBm(CE) (EIRP) |
|
2.4
GHz : 18dBm(FCC) / 18dBm(CE) (EIRP) |
|
Wireless
Modes |
Infrastructure
mode |
|
Wireless
Security |
WEP,
WPA/WPA2, WPA-PSK/WPA2-PSK |
|
OTHERS |
|
Certification |
FCC,
CE, RoHS |
|
Package
Contents |
AC1300
Dual Antennas High-Gain Wireless USB Adapter Archer T4U
Plus |
|
Quick
Installation Guide |
|
Resource
CD |
|
1-meter
USB 3.0 Cable |
|
System
Requirements |
Supported
operating systems include Windows 10/8.1/8/7, |
|
macOS |
|
Environment |
Operating
Temperature: 0~40 (32 ~104 |
|
Operating
Humidity: 10%~90% non-condensing |
|
Storage
Humidity: 5%~90%
non-condensing |
Networking
