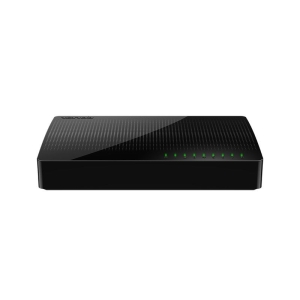

Tenda SG108 / Switch / 8-Port Gigabit Desktop Switch
Overview
SG108 is a 8-Port Gigabit Desktop SOHO switch. It provides 8 10/100/1000Mbps
auto-negotiation ports, which you can use to establish a LAN network, or extend
to the uplink network. Compared with a 100M switch, It enhances transmission
speed by up to 10 times, eliminating the bottleneck of cascading network
bandwidth. It supports desktop installation and wall-mounting. Without
configuration, it can be automatically installed and loaded once plug. With the
stable connectivity and easy-to-use features, it is perfectly fit for the
networking of school dormitories, small offices, home offices and Video
Surveillance.
Specifications
Standard&Protocol |
IEEE
802.3/u/x/ab |
Interface |
8*
10/100/1000Mbps auto-negotiation RJ45 ports, auto
MDI/MDIX |
Transmission
Media |
10BASE-T:
Cat.3 or Above |
|
100BASE-TX/1000BASE-T:
Cat.5, Cat.5e or Above |
Forwarding
Rate |
10Mbps:
14880pps |
|
100Mbps:
148800pps |
|
1000Mbps:
1488000pps |
LED |
8*10/100/1000Mbps
Link/Act LEDs |
|
1*power
LED |
Features |
Store-and-forward
mechanism |
|
Auto-learning
and auto-aging MAC address |
|
Switching
capacity of 16Gbps |
Power
Input |
100-240V~50/60Hz |
Power
Output |
9V/0.6A |
Consumption |
Standby:
2.3W Maximum5.5W220V/50Hz |
Dimension |
142*90*24mm |
Operation
Temperature |
0~45 |
Operating
Humidity |
10%~90%
non-condensing |
Storage
Temperature |
-40~70 |
Storage
Humidity |
5%~90%
non-condensing |
