Standard&Protocol |
IEEE
802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab |
Transmission
Media |
10Base-T:
Cat. 3 UTP or better, 100Base-TX: Cat.5 UTP or
better |
|
1000Base-T:
Cat.5e UTP or better, 1000BASE-X: MMF, SMF |
Forwarding
Speed |
10Mbps:
14880pps 100Mbps: 148800pps 1000Mbps:
1488000pps |
Power
Supply |
Input:
AC:100-240V |
|
50/60Hz |
Lightning
Protection |
6kV
in Common Mode Protection for 24*GE ports |
|
6kV
in Common Mode, 4kV in Differential Mode Protection for power
supply |
Dimension |
440mm*178mm*44mmL*W*H |
LED
indicator |
1*
Power, 24* Link/Act, 4*mode status lights |
Switching
Capacity |
48Gbps |
Packet
buffer |
256KB |
MAC
Address Table |
8K |
Fan
Quantity |
Fanless |
Power
Consumption |
Maximum
: 13W (220V) |
transmission
mode |
Store
and Forward |
Access
Control |
CDMA/CD |
Mode |
M1:
Standard mode, the default mode of the switch. In that mode, all ports can
communicate with each other. |
|
M2:
Flow Control Off mode. In this mode, flow control is disabled on all
ports. |
|
M3:
Link Aggregation mode. In this mode, ports 23 and 24 form a static link
aggregation group (Static LAG , SMAC+DMAC). |
|
M4:
Port-based VLAN mode, ports 1 to 22 can communicate with uplink ports
(ports 23 and 24) but cannot communicate with each
other. |
MAC
Address Learning |
Automatic
update |
Temperature |
Operating
Temperature: 0~40 |
|
Storage
Temperature: -40~70 |
Humidity |
Operating
Humidity: 10%~90% non-condensing |
|
Storage
Humidity: 5%~90% non-condensing |
Certification |
CCC,
CE , FCC , RoHS |
Related
Products |
TEG1008D
8-Port Gigabit Ethernet Switch |
|
TEG311SM
Single-Mode MiniGBIC Module |
|
TEG1024D
24-Port Gigabit Ethernet Switch |
System
Requirement |
Windows
8 32/64 bit , Windows 7 32/64 bit , Windows xp 32/64 bit , Linux , MAC
OS |
Package
Content |

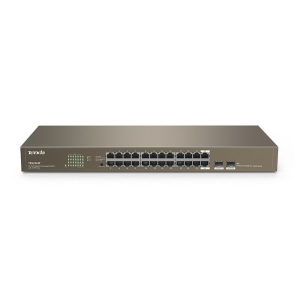

TEG1024F |
|
Power
Cord, Rackmount Kit, Rubber Feet |
|
User
Guide |
