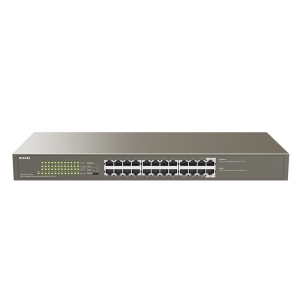

Tenda TEG1124P-24-250W 24-Port Gigabit Ethernet Switch with

Standard&Protocol

IEEE 802.3/IEEE 802.3u/IEEE 802.3ab/IEEE 802.3x/IEEE 802.3af/IEEE 802.3at

Indicator

24*Link/Act per device

24*PoE per device

1*Power per device

Interface

24 10/100/1000Base-T ports(Data/Power)

Lightning Protection

6KV

Store & Forward

Yes

exchange capacity

48 Gbp

Packet Forwarding Rate

35.6Mpps

RAM Data Buffer

4Mb

MAC Address Table

4K

PoE supply management

Port 1-24 support IEEE802.3at/af PoE standard

PoE through pin

1 2 4 5 +/3 6 7 8 -

Input Power

AC: 100-240V50/60Hz

Dimension

440*178*44mm( W x D x H )

Power Consumption

in full con guration: <250W

PoE Max Power Supply: 225W

Port Features

Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.

CCTV: the port cache is optimized and PoE ports 1-8 have higher priorities

over the other ports. All the ports of the switch can communicate with each other.

VLAN: ports 1 to 22 are isolated from each other, but can communicate with ports 23 and 24(uplink ports) respectively.

Isolation: ports 1 to 12 and Ports 13 to 24 belong to two di erent VLAN.This mode can be used to isolate supervision network and wireless network to make them not interfere with each other.

Environment

Operating Temperature: 0~40 (32~104)

Storage Temperature: -40~70 (-40~158)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
