DESCRIPTION

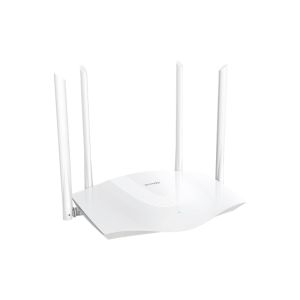

Tenda TX3 adopts the latest generation of Wi-Fi 6 with dual band concurrency rates of up to 1775 Mbps (2.4GHz: 574 Mbps, 5GHz: 1201 Mbps). With 1.5GHz high-performance quad-core processor units, the network load capacity has been greatly improved. The response you need is instantly quicker, and the long-term operation is more stable.
With MU-MIMO+OFDMA technology, significantly improve network performance and efficiency, allows more devices to access the Internet at the same time, lowering latency, multiplayer online games and HD-videos are smoother. TX3 is the preferred router for smart home system.
Operating Mode
Wireless Router Mode
Universal Repeater Mode
WISP Mode
Standard&rotocol IEEE802.3, IEEE802.3u,IEEE802.3ab
Interface
1*10/100/1000Mbps WAN port
3*10/100/1000Mbps LAN ports
Dimension 237.6*153.1*45mm (W*D*H)
Antenna 4*6dBi external antennas
Button 1* WPS1*Reset button
LED indicator SYS*1
Power
InputAC 100-240V~50/60Hz 0.6A
OutputDC 12V1A
Wireless Standards
IEEE 802.11ac/a/n/ax 5GHz
IEEE 802.11b/g/n/ax 2.4GHz
Data Rate 5GHz: Up to 1201Mbps 2.4GHz: Up to 574Mbps
Frequency Simultaneous dual band 2.4 &5GHz
Basic Features
SSID Broadcast: Enable/Disable
Transmission Power: high, medium, low
Beamforming
MU-MIMO
Wireless Security
WPA-PSK,WPA2-PSK, WPA/WPA2-PSK
WPA3-SAE/WPA2-PSK
Wireless Security: Enable/Disable
WPS(WiFi Protected Set-up) fast encryption
