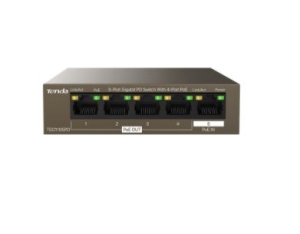

Tenda TEG1105PD 5-Port Gigabit PD Switch With 4-Port PoE
Overview
Featuring low cost, high performance and plug & play, the PoE switch
TEG1105PD is both a PSE and a PD, designed for such surveillance networking
scenarios as roads in parks/communities, medium to large factories, and
colleges. Small and delicate, it can be installed in an outdoor waterproof box
easily. The switch provides four 10/100/1000 Mbps PoE OUT ports (ports 1 to 4)
compliant with IEEE 802.3af and one 10/100/1000 Mbps PoE IN port (port 5)
compliant with IEEE 802.3af/at. The maximum PoE output power of the whole switch
is 30 W. The switch can supply power and transmit data to low-power APs and IP
cameras through CAT5 cables, greatly reducing the cost of the network
deployment. It is an ideal choice for wired networking in monitoring scenarios
of middle to long distance.
Specifications
|
Model |
TEG1105PD |
|
Network
standard |
IEEE
802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af, IEEE
802.3at |
|
LED
indicator |
1*
Power LED indicator |
|
4*
PoE LED indicators |
|
5*
Link/Act LED indicators |
|
Interface |
4*10/100/1000
Base-T Ethernet Ports(Data/PoE OUT) |
|
1*10/100/1000
Base-T Ethernet Port(Data/PoE IN) |
|
Transmission
Media |
Recommended:
CAT5/5e UTP or better |
|
Fan
Quantity |
N/A |
|
Dimension |
100
mm x 100 mm x 26 mm(L*W*H) |
|
Level
of protection |
Lightning
protection for ports: 6KV |
|
Lightning
protection for power:N/A |
|
ESD: |
|
Air
discharge: 8kV |
|
Contact
discharge: 6kV |
|
Forwarding
Mode |
Store-and-forward |
|
Switching
Capacity |
10
Gbps |
|
Packet
Forwarding Rate |
7.44Mpps |
|
Buffer |
1
Mb |
|
MAC
Address Table |
2K |
|
Jumbo
Frame |
9K |
|
PoE
budget |
Single
port: AF: 15.4W |
|
Whole
device: 30W |
|
Input
Voltage |
50-57V
DC, 0.6A |
|
Mounting |
Rack
mounting: Not support |
|
Wall
mounting: Not support |
|
Desktop
mounting: Support |
|
Environment |
Operating
temperature: 0C - 45C |
|
Storage
temperature: -40C - 70C |
|
Operating
humidity: (10% - 90%), non-condensing |
|
Storage
humidity: (5% - 90%), non-condensing |
|
Certification |
CQC,
FCC, CE, RoHS |
