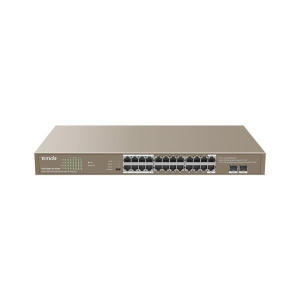

Tenda TEG1126P-24-410W 24GE+2SFP Ethernet Switch With 24-Port
PoE
Overview
TEG1126P-24-410W is a unmanaged PoE switch independently designed by Tenda.
Compliant with IEEE 802.3af and IEEE 802.3at standards, it can identify
PoE-powered devices intelligently. With a maximum PoE power output of 370W, and
30W for a single port, it can supply power when transmitting data with APs, IP
cameras, and IP phones. The switch supports 4 working modes, including standard,
priority, extend and VLAN modes, is an ideal choice for SMBs, hotels, schools,
factories with video surveillance and wireless networking requirements.
Specifications
|
Model |
TEG1126P-24-410W |
|
Network
standard |
IEEE802.3,
IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x,
IEEE802.3af/at |
|
LED
indicator |
24
* Link/Act LED |
|
2
*SFP LED |
|
1
* PoE-MAX LED |
|
1
* Power LED |
|
Interface |
24
* 100/1000 Mbps Base-T RJ45 ports (Data/
Power) |
|
2
* 1000 Mbps Base-X SFP Port(Combo) |
|
Transmission
Media |
Recommended:
CAT5/5e UTP or better |
|
Fan
Quantity |
2 |
|
Dimension |
440*284*44mm(L*W*H) |
|
Level
of protection |
Lightning
protection for ports: 6KV |
|
Lightning
protection for power:N/A |
|
ESD: |
|
Air
discharge: 10kV |
|
Contact
discharge: 8kV |
|
Forwarding
Mode |
Store-and-forward |
|
Switching
Capacity |
48Gbps |
|
Packet
Forwarding Rate |
35.7Mpps |
|
Buffer |
2M |
|
MAC
Address Table |
8K |
|
Jumbo
Frame |
N/A |
|
PoE
budget |
Single
port: AF: 15.4W, AT: 30W |
|
Whole
device:370W |
|
Input
Voltage |
100240V
AC 50/60Hz |
|
Mounting |
Desktop
mounting: support |
|
Wall
mounting: support |
|
Rack
mounting : support |
|
Environment |
Operating
temperature: 0C - 45C |
|
Storage
temperature: -40C - 70C |
|
Operating
humidity: (10% - 90%), non-condensing |
|
Storage
humidity: (5% - 90%), non-condensing |
|
Certification |
FCC,
CE,
RoHS |
