All stock codes associated to this product
SFP10GERST, 3572681

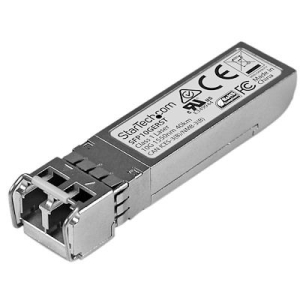

Cisco SFP-10G-ER Compatible SFP+ Transceiver Module -
10GBASE-ER
Overview
The SFP10GERST is a Cisco SFP-10G-ER compatible fiber transceiver module that
has been designed, programmed and tested to work with Cisco brand switches and
routers. It delivers dependable 10 GbE connectivity over fiber cable, for
10GBASE-ER compliant networks, with a maximum distance of up to 40 km (24.8 mi).
- Wavelength: 1550nm
- Maximum Data Transfer Rate: 10 Gbps
- Type: Single Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 40 km (24.8 mi)
- MTBF: 1,293,340 hours
- Power Consumption: Less than 1.6 Watts
- Digital Diagnostics Monitoring (DDM): Yes
- This SFP+ fiber module is hot-swappable, making upgrades and replacements
seamless by minimizing network disruptions.
Specifications
|
Warranty
Information |
|
|
Warranty |
Lifetime |
|
Color |
Silver |
|
Material |
Aluminum |
|
System
and Cable Requirements |
MSA
or Cisco compliant SFP+ port |
|
Connector(s) |
|
|
1
- Local Unit Connectors |
Fiber
Optic LC Duplex |
|
Environmental |
|
|
Operating
Temperature |
0C
to 70C (32F to 158F) |
|
Storage
Temperature |
-40C
to 85C (-40F to 185F) |
|
Humidity |
5~95%
RH |
|
Hardware |
|
|
Compatible
Brand |
Cisco |
|
Industry
Standards |
IEEE
802.3ae 10GBASE-ER |
|
Packaging
Information |
|
|
Package
Length |
4,7
in [12,0 cm] |
|
Package
Width |
3,5
in [90,0 mm] |
|
Package
Height |
1,2
in [30,0 mm] |
|
Shipping
(Package) Weight |
3,4
oz [95,0 g] |
|
Performance |
|
|
Maximum
Data Transfer Rate |
10
Gbps |
|
Max
Transfer Distance |
40
km (24.8 mi) |
|
Type |
Single
Mode |
|
Wavelength |
1550nm |
|
Fiber
Operating Mode |
Full-Duplex |
|
DDM |
Yes |
|
Compatible
Networks |
10
Gbps |
|
MTBF |
1,293,340
hours |
|
Power
Consumption (In Watts) |
<
1.6 W |
|
Physical
Characteristics |
|
|
Product
Length |
2,3
in [58,4 mm] |
|
Product
Width |
0,5
in [13,9 mm] |
|
Product
Height |
0,5
in [12,6 mm] |
|
Weight
of Product |
0,8
oz [23,0 g] |
|
Special
Notes / Requirements |
|
|
Note |
For
use in 10 Gigabit fiber networking equipment and media
converters |
|
What's
in the Box |
|
|
1
- Included in Package |
SFP+
transceiver |
