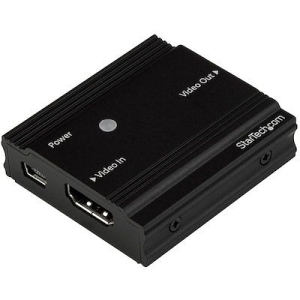

Startech HDMI Signal Booster - HDMI Extender - 4K 60Hz
Overview
This 4K HDMI signal booster lets you increase the signal strength of your
HDMI video source so it can travel greater distances using standard HDMI cables.
You can achieve resolutions up to 4K at 60Hz at distances of up to 30 ft. (10
m), and depending on your desired resolution, the booster supports distances up
to 115 ft. (35 m) away at 1080p 60Hz resolution.
Maintains Ultra HD 4K video signals at 60Hz
When youre extending HDMI over distances using standard video cabling, higher
resolutions from your HDMI 2.0 devices can become unavailable after a few feet.
Using this HDMI signal booster ensures that HDMI 2.0 resolutions up to UHD 4K at
60Hz are available even at distances up to 30 ft. (10 m).
You can achieve even longer distances at lower resolutions -- up to 4K at
30Hz, at up to 82 ft. (25 m), and 1080p at 60Hz at up to 115 ft. (35
m).
Easy and discreet installation
With its small form factor design and no external power adapter, the HDMI
booster is easy to hide, for a discreet installation. By extending your video
signal using standard HDMI cables, the 4K booster is a cost-effective
alternative to more expensive extension systems that require the installation of
a CAT5 or CAT6 cabling infrastructure.
Supports a variety of distances
The booster makes it easy to adjust your HDMI signal strength based on the
distance of your cables, with equalization adjustment buttons. This means that
you can adjust the amplification of your HDMI signal, to ensure your signal will
be flawless.
Support for a variety of extension distances makes the booster perfect for
multi-device deployment across large institutions, such as boardrooms in
corporate offices, classrooms in schools, or waiting rooms in hospitals, as
these applications may require varied distances in different
rooms.
Note: To achieve resolutions up to 4K60, your video source, display and
cabling must support HDMI 2.0.
The HDBOOST4K is TAA compliant and backed by a 2-year StarTech.com warranty
with free lifetime technical support.
Specifications
|
Warranty
Information |
Warranty |
2
Years |
|
Connector(s) |
1
- Connector A |
HDMI
(19 pin) |
|
1
- Connector B |
HDMI
(19 pin) |
|
Environmental |
Operating
Temperature |
0C
to 35C (32F to 95F) |
|
Storage
Temperature |
-5C
to 40C (23F to 104F) |
|
Humidity |
20C
to 80C (68F to 176F) |
|
Hardware |
AV
Input |
HDMI |
|
AV
Output |
HDMI |
|
Cabling |
HDMI |
|
Audio |
Yes |
|
Rack-Mountable |
No |
|
Daisy-Chain |
No |
|
Indicators |
1
- LED Indicators |
Power
LED |
|
Packaging
Information |
Package
Height |
1.8
in [46 mm] |
|
Package
Length |
6.2
in [15.7 cm] |
|
Shipping
(Package) Weight |
6.0
oz [170 g] |
|
Package
Width |
4.0
in [10.1 cm] |
|
Performance |
Maximum
Cable Length |
114.8
ft [35 m] |
|
Max
Distance |
35
m / 115 ft |
|
Maximum
Digital Resolutions |
At
10 m |
|
Up
to 4K at 60Hz |
|
At
25 m |
|
Up
to 4K at 30Hz |
|
At
35 m |
|
Up
to 1080p |
|
Supported
Resolutions |
3840x2160
(4K), 2560x1600, 1920x1200, 1920x1080 (1080p), 1280x720
(720p) |
|
Wide
Screen Supported |
Yes |
|
Physical
Characteristics |
Product
Length |
2.2
in [56 mm] |
|
Product
Width |
1.8
in [46 mm] |
|
Product
Height |
0.6
in [15 mm] |
|
Weight
of Product |
5.3
oz [150 g] |
|
Power |
Power
Source |
USB-Powered |
|
What's
in the Box |
1
- Included in Package |
HDMI
signal booster |
|
|
5
ft [1.5 m] USB power
cable |
