All stock codes associated to this product
AJ716BST, 3572272

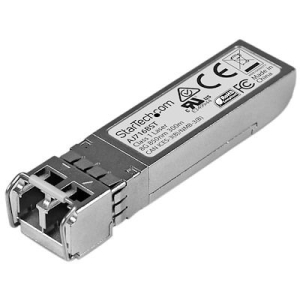

HPE AJ716B Compatible SFP+ Module - 8G Fiber Channel SW - 8GbE Multi
Mode Fiber Optic Transceiver - 8GE Gigiabit Ethernet SFP+ - LC 300m - 850nm -
DDM HPE SN4000, SN6500, SN8600B
Overview
The AJ716BST is an HP AJ716B compatible fiber transceiver module that has
been designed, programmed and tested to work with HP brand switches and routers.
It delivers dependable 8Gb fiber channel connectivity over fiber cable, for 8GFC
compliant networks, with a maximum distance of up to 300 m (984 ft.).
- Wavelength: 850 nm
- Maximum Data Transfer Rate: 8 Gbps
- Type: Multimode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 300 m (984 ft.)
- MTBF: 1,967,709 hours
- Power Consumption: Less than 1.2 Watts
- Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements
seamless by minimizing network disruptions.
Specifications
|
Warranty
Information |
Warranty |
Lifetime |
|
Color |
Silver |
|
Material |
Aluminum |
|
System
and Cable Requirements |
MSA
or HP compliant SFP+ port |
|
Connector(s) |
1
- Local Unit Connectors |
Fiber
Optic LC Duplex |
|
Environmental |
Operating
Temperature |
0C
to 70C (32F to 158F) |
|
Storage
Temperature |
-40C
to 85C (-40F to 185F) |
|
Humidity |
5~95%
RH |
|
Hardware |
Compatible
Brand |
HPE |
|
Industry
Standards |
8GFC |
|
Packaging
Information |
Package
Height |
1.3
in [33.0 mm] |
|
Package
Length |
3.7
in [93.0 mm] |
|
Shipping
(Package) Weight |
1.6
oz [46.0 g] |
|
Package
Width |
4.6
in [11.8 cm] |
|
Performance |
Maximum
Data Transfer Rate |
8
Gbps |
|
Max
Transfer Distance |
300
m (984 ft) |
|
Type |
Multi
Mode |
|
Wavelength |
850nm |
|
Fiber
Operating Mode |
Full-Duplex |
|
DDM |
Yes |
|
Compatible
Networks |
8
Gbps |
|
MTBF |
1,967,709
hours |
|
Power
Consumption (In Watts) |
<
1.2 W |
|
Physical
Characteristics |
Weight
of Product |
0.6
oz [18.0 g] |
|
Product
Length |
2.3
in [58.4 mm] |
|
Product
Width |
0.5
in [13.9 mm] |
|
Product
Height |
0.5
in [12.6 mm] |
|
Special
Notes / Requirements |
Note |
For
use in 8G Fibre Channel (8GFC) - Short Wave networking equipment and media
converters |
|
What's
in the Box |
1
- Included in Package |
SFP+
transceiver |
