All stock codes associated to this product
JD089BST, 3572274

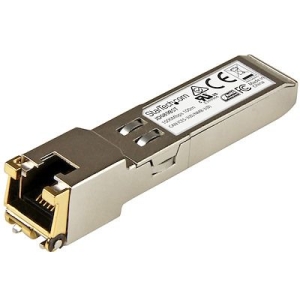

HPE JD089B Compatible SFP Module - 1000BASE-T - SFP to RJ45
Cat6/Cat5e - 1GE Gigabit Ethernet SFP - RJ-45 100m - HPE 5820AF, 12500,
5500
Overview
The JD089BST is an HP JD089B compatible copper transceiver module that has
been designed, programmed and tested to work with HP brand switches and routers.
It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-T
compliant networks, with a maximum distance of up to 100 m (328 ft).
- Maximum Data Transfer Rate: 1000 Mbps
- Type: Copper
- Connection Type: RJ45 Connector
- Maximum Transfer Distance: 100 m (328 ft)
- MTBF: 4,655,371 hours
- Power Consumption: Less than 1.3 Watts
- Digital Diagnostics Monitoring (DDM): No
- This SFP copper module is hot-swappable, making upgrades and replacements
seamless by minimizing network disruptions.
Specifications
|
Warranty
Information |
Warranty |
Lifetime |
|
Auto
MDIX |
Yes |
|
Color |
Silver |
|
Material |
Aluminum |
|
System
and Cable Requirements |
MSA
or HP compliant SFP port |
|
|
For
use in 1 Gigabit networking equipment and media
converters |
|
Connector(s) |
1
- Local Unit Connectors |
RJ-45 |
|
Environmental |
Operating
Temperature |
0C
to 70C (32F to 158F) |
|
Storage
Temperature |
-40C
to 85C (-40F to 185F) |
|
Humidity |
5~95%
RH |
|
Hardware |
Industry
Standards |
IEEE
802.3i 10BASE-T |
|
Compatible
Brand |
HPE |
|
Industry
Standards |
IEEE
802.3ab 1000BASE-T |
|
|
IEEE
802.3u 100BASE-TX |
|
Packaging
Information |
Package
Height |
1.4
in [35 mm] |
|
Package
Length |
3.7
in [93 mm] |
|
Shipping
(Package) Weight |
1.9
oz [54 g] |
|
Package
Width |
4.7
in [11.9 cm] |
|
Performance |
Maximum
Data Transfer Rate |
1000
Mbps |
|
Max
Transfer Distance |
100
m (328 ft) |
|
Type |
Copper |
|
Fiber
Operating Mode |
Full-Duplex |
|
DDM |
No |
|
Compatible
Networks |
10/100/1000
Mbps |
|
MTBF |
4,655,371
hours |
|
Power
Consumption (In Watts) |
<
1.3 W |
|
Physical
Characteristics |
Weight
of Product |
0.9
oz [25 g] |
|
Product
Length |
2.7
in [68 mm] |
|
Product
Width |
0.5
in [13.7 mm] |
|
Product
Height |
0.5
in [13.8 mm] |
|
What's
in the Box |
1
- Included in Package |
SFP
transceiver |
