All stock codes associated to this product
JD119BST, 3572677

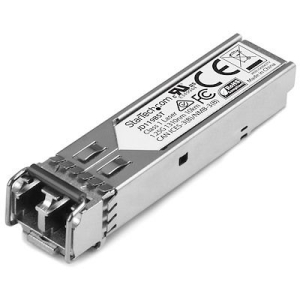

HPE JD119B Compatible SFP Module - 1000BASE-LX - 1GbE Single Mode
Fiber Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 10km - 1310nm - DDM HPE
5900, 12500, 5500
Overview
The JD119BST is an HP JD119B compatible fiber transceiver module that has
been designed, programmed and tested to work with HP brand switches and routers.
It delivers dependable 10 GbE connectivity over fiber cable, for 1000BASE-LX
compliant networks, with a maximum distance of up to 10 km (6.2 mi).
- Wavelength: 1310 nm
- Maximum Data Transfer Rate: 1.25 Gbps
- Type: Single Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 10 km (6.2 mi)
- MTBF: 3,092,408 hours
- Power Consumption: Less than 1 Watt
- Digital Diagnostics Monitoring (DDM): Yes
- This SFP fiber module is hot-swappable, making upgrades and replacements
seamless by minimizing network disruptions.
Specifications
|
Warranty
Information |
Warranty |
Lifetime |
|
Color |
Silver |
|
Material |
Aluminum |
|
System
and Cable Requirements |
MSA
or HP compliant SFP port |
|
|
For
use in Gigabit fiber networking equipment and media
converters |
|
Connector(s) |
1
- Local Unit Connectors |
Fiber
Optic LC Duplex |
|
Environmental |
Operating
Temperature |
0C
to 70C (32F to 158F) |
|
Storage
Temperature |
-40C
to 85C (-40F to 185F) |
|
Humidity |
5~95%
RH |
|
Hardware |
Compatible
Brand |
HPE |
|
Industry
Standards |
IEEE
802.3z 1000BASE-LX |
|
Packaging
Information |
Package
Height |
1.3
in [33.0 mm] |
|
Package
Length |
3.7
in [93.0 mm] |
|
Shipping
(Package) Weight |
1.6
oz [46.0 g] |
|
Package
Width |
4.6
in [11.8 cm] |
|
Performance |
Maximum
Data Transfer Rate |
1.25
Gbps |
|
Max
Transfer Distance |
10
km (6.2 mi) |
|
Type |
Single
Mode |
|
Wavelength |
1310nm |
|
Fiber
Operating Mode |
Full-Duplex |
|
DDM |
Yes |
|
Compatible
Networks |
1000
Mbps (1 Gbps) |
|
MTBF |
3,092,408
hours |
|
Power
Consumption (In Watts) |
<
1 W |
|
Physical
Characteristics |
Weight
of Product |
0.6
oz [16.0 g] |
|
Product
Length |
2.2
in [56.6 mm] |
|
Product
Width |
0.5
in [13.7 mm] |
|
Product
Height |
0.5
in [12.5 mm] |
|
What's
in the Box |
1
- Included in Package |
SFP
transceiver |
