All stock codes associated to this product
JD094BST, 3572675

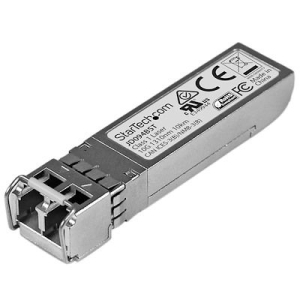

HPE JD094B Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode
Fiber Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 10km - 1310nm - DDM
HPE 5900, 12500, 5500
Overview
The JD094BST is an HP JD094B compatible fiber transceiver module that has
been designed, programmed and tested to work with HP brand switches and routers.
It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LR
compliant networks, with a maximum distance of up to 10 km (6.2 mi).
- Wavelength: 1310 nm
- Maximum Data Transfer Rate: 11.1 Gbps
- Type: Single Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 10 km (6.2 mi)
- MTBF: 2,104,865 hours
- Power Consumption: Less than 1.2 Watts
- Digital Diagnostics Monitoring (DDM): Yes
- This SFP+ fiber module is hot-swappable, making upgrades and replacements
seamless by minimizing network disruptions.
Specifications
|
Warranty
Information |
Warranty |
Lifetime |
|
Color |
Silver |
|
Material |
Aluminum |
|
System
and Cable Requirements |
MSA
or HP compliant SFP port |
|
Connector(s) |
1
- Local Unit Connectors |
Fiber
Optic LC Duplex |
|
Environmental |
Operating
Temperature |
0C
to 70C (32F to 158F) |
|
Storage
Temperature |
-40C
to 85C (-40F to 185F) |
|
Humidity |
5~95%
RH |
|
Hardware |
Compatible
Brand |
HPE |
|
Industry
Standards |
IEEE
802.3ae 10GBASE-LR |
|
Packaging
Information |
Package
Height |
1.3
in [33.0 mm] |
|
Package
Length |
3.6
in [92.0 mm] |
|
Shipping
(Package) Weight |
1.7
oz [49.0 g] |
|
Package
Width |
4.7
in [11.9 cm] |
|
Performance |
Maximum
Data Transfer Rate |
10
Gbps |
|
Max
Transfer Distance |
10
km (6.2 mi) |
|
Type |
Single
Mode |
|
Wavelength |
1310nm |
|
Fiber
Operating Mode |
Full-Duplex |
|
DDM |
Yes |
|
Compatible
Networks |
10
Gbps |
|
MTBF |
2,104,865
hours |
|
Power
Consumption (In Watts) |
<
1.2 W |
|
Physical
Characteristics |
Weight
of Product |
0.7
oz [20.0 g] |
|
Product
Length |
2.3
in [58.4 mm] |
|
Product
Width |
0.5
in [13.9 mm] |
|
Product
Height |
0.5
in [12.6 mm] |
|
Special
Notes / Requirements |
Note |
For
use in 10 Gigabit fiber networking equipment and media
converters |
|
What's
in the Box |
1
- Included in Package |
SFP+
transceiver |
