All stock codes associated to this product
JD118BST, 3572676

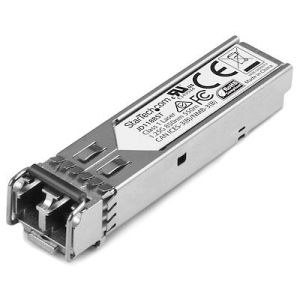

HPE JD118B Compatible SFP Module - 1000BASE-SX - 1GbE Multi Mode
Fiber Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m - 850nm - DDM HPE
5900, 12500, 5500
Overview
The JD118BST is an HP JD118B compatible fiber transceiver module that has
been designed, programmed and tested to work with HP brand switches and routers.
It delivers dependable 10 GbE connectivity over fiber cable, for 1000BASE-SX
compliant networks, with a maximum distance of up to 550 m (1804 ft).
- Wavelength: 850 nm
- Maximum Data Transfer Rate: 1.25 Gbps
- Type: Multi Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 550 m (1804 ft)
- MTBF: 3,381,761 hours
- Power Consumption: Less than 1 Watt
- Digital Diagnostics Monitoring (DDM): Yes
- This SFP fiber module is hot-swappable, making upgrades and replacements
seamless by minimizing network disruptions.
Specifications
|
Warranty
Information |
Warranty |
Lifetime |
|
Color |
Silver |
|
Material |
Aluminum |
|
System
and Cable Requirements |
MSA
or HP compliant SFP port |
|
Connector(s) |
1
- Local Unit Connectors |
Fiber
Optic LC Duplex |
|
Environmental |
Operating
Temperature |
0C
to 70C (32F to 158F) |
|
Storage
Temperature |
-40C
to 85C (-40F to 185F) |
|
Humidity |
5~95%
RH |
|
Hardware |
Compatible
Brand |
HPE |
|
Industry
Standards |
IEEE
802.3z 1000BASE-SX |
|
Packaging
Information |
Package
Height |
1.3
in [32.0 mm] |
|
Package
Length |
3.7
in [93.0 mm] |
|
Shipping
(Package) Weight |
1.6
oz [46.0 g] |
|
Package
Width |
4.6
in [11.8 cm] |
|
Performance |
Maximum
Data Transfer Rate |
1.25
Gbps |
|
Max
Transfer Distance |
550
m (1804 ft) |
|
Type |
Multi
Mode |
|
Wavelength |
850nm |
|
Fiber
Operating Mode |
Full-Duplex |
|
DDM |
Yes |
|
Compatible
Networks |
1000
Mbps (1 Gbps) |
|
MTBF |
3,381,761
hours |
|
Power
Consumption (In Watts) |
<
1 W |
|
Physical
Characteristics |
Weight
of Product |
0.6
oz [18.0 g] |
|
Product
Length |
2.2
in [56.6 mm] |
|
Product
Width |
0.5
in [13.7 mm] |
|
Product
Height |
0.5
in [12.5 mm] |
|
Special
Notes / Requirements |
Note |
For
use in Gigabit fiber networking equipment and media
converters |
|
What's
in the Box |
1
- Included in Package |
SFP
transceiver |
