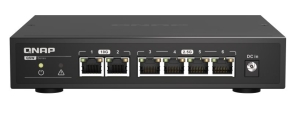

QNAP QSW-2104-2T Umanaged Switch
Overview
The QSW-2104-2T is an easy-to-use unmanaged switch with 2-port 10GbE RJ45 and
4-port 2.5GbE RJ45, allowing you to upgrade your network environment by
connecting a wider range of devices with different bandwidth requirements.
Featuring a near-silent fanless design and compliance with IEEE 802.3az (Energy
Efficient Ethernet, EEE), the QSW-2104-2T operates quietly and with optimal
power usage. With high performance and superb functionality, the QSW-2104-2T is
the ideal choice for creating an affordable high-speed network environment in
your home or workplace.
- Two 10GbE RJ45 ports (compatible with the 10GBASE-T/NBASE-T standard)
support 5 speeds (10G/5G/2.5G/1G/100M) to meet different bandwidth
requirements.
- Four 2.5GbE RJ45 (2.5G/1G/100M) ports can immediately multiply your
network speed by 2.5 times using existing Cat 5e cables.
- No complex settings are required, and auto-negotiation ensures optimal
performance.
- Automatic loop detection and blocking to ensure continuous network
operation.
- The unique fanless design with ventilated construction provides noiseless
operation.
- IEEE 802.3az (EEE) helps to reduce power consumption for low-speed and
inactive connections.
Specifications
|
Management
Type |
Unmanaged |
|
Number
of Ports |
6 |
|
10GbE
BASE-T (RJ45) |
2 |
|
2.5GbE
(RJ45) |
4 |
|
Power
Supply Description |
Adapter |
|
Max.
Power Consumption |
12W |
|
Input
Power Type |
DC |
|
Input
Voltage Range |
12V/1A |
|
MAC
Address Table |
16K |
|
Total
Non-Blocking Throughput |
30Gbps |
|
Switching
Capacity |
60Gbps |
|
Energy
Efficient Ethernet (IEEE 802.3az complaint) |
Yes |
|
Fanless |
Yes |
|
Supported
Standards |
IEEE
802.3u 100Base-TX Fast Ethernet |
|
IEEE
802.3ab 1000BASE-T Gigabit Ethernet |
|
IEEE
802.3bz 2.5G/5GBase-T |
|
IEEE
802.3an 10GBase-T |
|
IEEE
802.3az Energy Efficient Ethernet (EEE)IEEE |
|
Form
Factor |
Desktop |
|
LED
Indicators |
Per
Port: Speed/Link/Activity |
|
Loop
LED: Loop |
|
Per
System: Power/Status |
|
Dimensions
(HxWxD) |
34
x 180 x145 mm |
|
Weight
(Net) |
0.722
kg |
|
Weight
(Gross) |
1.02
kg |
|
Operating
Temperature |
0C
to 40C (32F to 104F) |
|
Relative
Humidity |
5~90%
Non-condensing |
|
Certifications |
FCC,
CE, BSMI, VCCI, LVD,CCC,KCC |
|
Electromagnetic
Compliance |
Class
B |
|
Jumbo
Frames |
9K |
|
Warranty |
2
Years |
