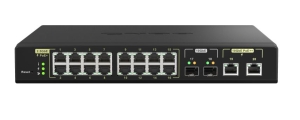

QNAP QSW-M2116P-2T2S 90-watt 10GbE PoE++ and 30-watt 2.5GbE PoE+
Managed Switch for the Wi-Fi 6 Generation
Overview
The QNAP QSW-M2116P-2T2S is a L2 PoE Managed Switch with sixteen 30-watt
2.5GbE PoE+ ports, two 90-watt 10GbE PoE++ ports. Offering a total power budget
of 280 watts and two 10GbE SFP+ ports, the QSW-M2116P-2T2S not only enables a
high-speed and high-power PoE network infrastructure for Wi-Fi 6 Access Points
and Routers, but also provides backbone network uplinking capabilities. The QSS,
QNAP Switch System with user-friendly web interface, helps IT administrators
efficiently control Layer 2 and PoE networks, including wireless APs, IP Cameras
and Digital Signage, core Switches and Servers. The QSW-M2116P-2T2S offers SMBs
a cost-optimized and centrally managed LAN deployment solution.
- Compliant with the IEEE 802.3bt PoE++ and IEEE 802.3at PoE+ standards.
Offers 2-port 90-watt and 16-port 30-watt PoE capabilities. Can supply a total
power budget of 280 watts to meet the demands of high-powered devices
(PDs).
- Compatible with 10GBASE-T and 5GBASE-T technologies to support five speeds
(10G / 5G / 2.5G / 1G / 100M), the QSW-M2116P-2T2S offers higher transmission
speeds when used with existing cables.
- Two 10GbE SFP+ ports can connect to the Internet, Routers, core switches,
and NAS to fulfill the high bandwidth demands of backbone network or data
centers.
- Offers a user-friendly web interface to help IT administrators efficiently
control Layer 2 and PoE networks. Additionally, the overview dashboard and
graphical statistics analysis show IT administrators all switch information
and powered devices at a glance, making central management of high-power
devices intuitive and easy.
- Provides comprehensive Layer 2 management features (such as VLAN, LACP,
QoS IGMP Snooping, and Wake-on-LAN) for IT administrators to efficiently
control network bandwidth and enhance security via the user-friendly switch
management web interface.
- QSS (QNAP Switch System) helps administrators update firmware with just
one click, ensuring network security.
Specifications
|
Management
Type |
Web
Managed |
|
Number
of Ports |
20 |
|
10GbE
SFP+ |
2 |
|
10GbE
BASE-T (RJ45) |
2 |
|
2.5GbE
(RJ45) |
16 |
|
Total
PoE Ports |
18 |
|
PoE
PSE (802.3af, 15.4W) |
Port
1-16 |
|
PoE+
PSE (802.3at, 30W) |
Port
1-16 |
|
PoE++
PSE (802.3bt, 90W) |
Port
19-20 |
|
PoE
Power Output |
Port
1-16 (30W), Port 19-20 (90W) |
|
Total
PoE Power Budget |
280W |
|
Power
Supply Description |
Internal
Power Supply Unit |
|
Max.
Power Consumption |
350W |
|
Input
Power Type |
AC |
|
Input
Voltage Range |
100-240VAC,
50/60 Hz |
|
MAC
Address Table |
32K |
|
Total
Non-Blocking Throughput |
80Gbps |
|
Switching
Capacity |
160Gbps |
|
Management
Interface |
Web |
|
Console |
RJ45 |
|
Energy
Efficient Ethernet (IEEE 802.3az complaint) |
Yes |
|
Fan |
PWM
double ball bearing fan x 2 |
|
Supported
Standards |
IEEE
802.3 Ethernet |
|
IEEE
802.3u 100BASE-T |
|
IEEE
802.3ab 1000BASE-T |
|
IEEE
802.3z 1000BASE-SX/LX |
|
IEEE
802.3an 10G BASE-T |
|
IEEE
802.3ae 10G Fiber |
|
IEEE
802.3x Full-Duplex Flow Control |
|
IEEE
802.1Q VLAN Tagging |
|
IEEE
802.3ad LACP |
|
IEEE
802.1AB LLDP |
|
IEEE
802.3az Energy Efficient Ethernet |
|
IEEE
802.3af/at/bt Power-over-Ethernet (PoE) |
|
Form
Factor |
Rackmount |
|
LED
Indicators |
Per
Port: Speed/Link/Activity |
|
Per
System: Status/PoE/Fan |
|
Buttons |
Reset
button |
|
Dimensions
(HxWxD) |
43.5
x 285 x 234.8 mm |
|
Weight
(Net) |
2.08
kg |
|
Weight
(Gross) |
2.13
kg |
|
Operating
Temperature |
0C
to 40C (32F to 104F) |
|
Relative
Humidity |
5~95%
Non-condensing |
|
Certifications |
CE,
FCC, VCCI, BSMI |
|
Electromagnetic
Compliance |
CLASS
A |
|
Jumbo
Frames |
9K |
|
Warranty |
2
Years |
