SFP-10G-Copper | Cambium 10GBase-T (RJ45) Copper SFP Transceiver

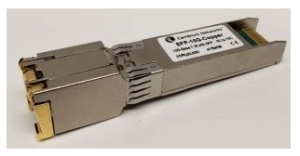

Cambium 10GBase-T (RJ45) Copper SFP Transceiver

Overview

This Small Form Pluggable Plus (SFP+) transceiver is a high performance, cost effective module compliant with the 10 Gigabit Ethernet and 10G BASE-T standards as specified in IEEE 802. 3-2015 and IEEE 802.3an, which supporting 10Gbps data-rate up to 30 meters reach over shielded twistedpair category 6A cable. The module supports 10Gbps full duplex data-links with 16-level Pulse Amplitude Modulation (PAM) signals. The module provides standard serial ID information compliant with SFP+ MSA, which can be accessed with address of A0h via the 2wire serial bus. The physical IC can also be accessed via 2wire serial bus at address ACh.

Features

• Supports Links up to 30m using Cat 6A Cable
• SFF-8431 and SFF-8432 MSA Compliant
• IEEE 802.3az and 802.3an Compliant
• Hot-pluggable SFP+ footprint
• TX Disable and RX Los function
• Fully metallic enclosure for Low EMI Emissions
• +3.3V single power supply
• Low Power Consumption (2.5W MAX @ 30m)
• Compact RJ-45 connector assembly
• Access to physical layer IC via 2-wire serial bus
• Auto-negotiates with other 10GBase-T PHYs
• MDI/MDIX Crossover
• Multiple Loopback Modes for Testing and Troubleshooting
• Built-in Cable Monitoring and Link Diagnostic
• Unshielded and Shielded cable support
• Operating case temperature range of 0C to +70C
