TP-Link TL-SG1210MP 10-Port Gigabit Desktop Switch with 8-Port

Computer store - Techbuy Home Computers Custom PC Systems Tablets Networking Printers Phones Point of Sale Gaming

Merry Christmas from the team at Techbuy Christmas Trading Hours

HOME / Back -> Networking -> Switches -> TP-Link

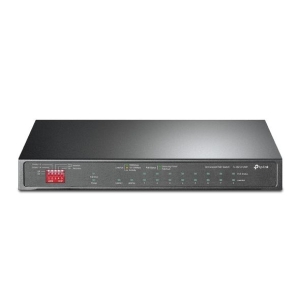

TP-Link TL-SG1210MP 10-Port Gigabit Desktop Switch with 8-Port PoE+ - 10/100/1000Mbps

Our Price:

$165.60

RRP:

~~$209.00~~

You Save:

$43.40

Qty:

Add To Cart

or quickly purchase this product

Buy Now

In stock for shippingShips from our warehouse in 1-3 business days

Part Number:

500499

(?) Brand:

TP-Link

Manuf No:

TL-SG1210MP
TLSG1210MP

Shipping Weight:

1.41 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

TLSG1210MP, TL-SG1210MP, NWTLSG1210MP, NWTL-SG1210MP, 5240873, TL-SG1210MP, II346673, 6935364052683, TL30232

TP-Link TL-SG1210MP 10-Port Gigabit Desktop Switch with 8-Port PoE+

Overview

9x gigabit RJ45 ports, and 1x gigabit combo SFP/RJ45 Port
8x PoE+ ports transfer data and power via a single cable with a total power budget of 123 W*
Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
Up to 250 m data and power transmission range under Extend Mode**
Priority Mode ensures high priority of ports 12 to guarantee the quality of the sensitive applications
Isolation Mode allows one-click client traffic separation for higher security and performance
Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery.
Plug and play with no configuration required
Fanless design reduces power consumption and works silently in its location

Specifications

HARDWARE FEATURES
Interface	9x 10/100/1000 Mbps RJ45 Ports
	1x 1000 Mbps Combo SFP/RJ45 Port
	AUTO Negotiation
	AUTO MDI/MDIX
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
	EIA/TIA-568 100 STP (maximum 100m)
	100BASE-TX: UTP category 5, 5e cable (maximum 100m)
	EIA/TIA-568 100 STP (maximum 100m)
Fan Quantity	Fanless
Physical Security Lock	Yes
External Power Supply	External Power Adapter (Output: 53.5VDC / 2.43A)
Packet Forwarding Rate	14.88 Mpps
PoE Ports (RJ45)	Standard: 802.3 af/at compliant
	PoE Ports: Ports 18
	Power Supply: 123 W
Mac Address Table	4K
Jumbo Frame	16 KB
Switching Capacity	20 Gbps
Dimensions ( W x D x H )	8.2 x 4.9 x 1.0 in (209 x 126 x 26 mm)
Max Power Consumption	7.93 W (220V / 50Hz with no PD connected)
Max Power Consumption	141.40 W (220V / 50Hz with 123 W PD connected)
Max Heat Dissipation	27.04 BTU/h (220V / 50Hz with no PD connected)
Max Heat Dissipation	482.17 BTU/h (220V / 50Hz with 123 W PD connected)
SOFTWARE FEATURES
Transmission Method	Store-And-Forward
Advanced Functions	Compatible With IEEE 802.3af/at Compliant PDs
	Extend Mode Button (Ports 14, Up to 250 m PoE power supply and data transmission)
	Priority Mode Button (Ports 12)
	Isolation Mode Button (Ports 14 / 5-8)
	PoE Auto Recovery (Ports 1-8)
	Mac Address Auto-Learning and Auto-Aging
	IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
OTHERS
Certification	FCC, CE, RoHS
Package Contents	TL-SG1210MP
	Power Adapter
	Installation Guide
Environment	Operating Temperature: 040 (32104 )
	Storage Temperature: -4070 (-40158 )
	Operating Humidity: 1090% RH non-condensing
	Storage Humidity: 590% RH non-condensing

No additional files, specification sheets, guides or documentation found for product.

Warranty: 60 months*

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
