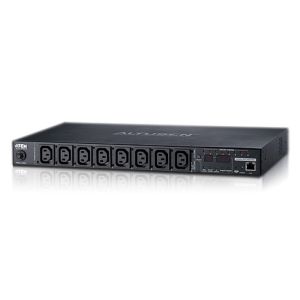

ATEN PE6108G-ATA-G 8 Port 10A Eco Power Distribution Unit

Aten 15A/10A 8-Outlet 1U Metered & Switched eco PDU

Overview

• Remote power outlet control (On, Off, Power Cycle) by individual outlets
• Real-time current, voltage, and kWH displayed in a browsed-based UI for monitoring at the PDU level
• Proactive Overload Protection (POP) automatically powers off outlets when current overloads to protect operating devices Management
• Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, auto sense, Ping, Telnet

Power Distribution

• Space saving 1U rack mount design with rear mounting
• IEC or NEMA outlet models
• 3 digit 7-segment front panel LED shows Current / IP Address
• Remote users can monitor outlet status via web pages on their browsers
• Safe shutdown support
• Separate power for the unit's own power and its power outlets. The user interface is still accessible even when an overload condition trips the devices' circuit breaker

Remote Access

• Remote power control via TCP/IP and a built in 10/100 Ethernet port
• Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, auto sense, Ping, Telnet
• eco PDU Power Management software eco Sensors
• Supports SNMP Manager V3

Operation

• Remote power outlet control (On, Off, Power Cycle) by individual outlets
• Power-on sequencing users can set the power on sequence and delay time for each port to allow equipment to be turned on in the proper order
• Easy setup and operation via a browser-based user interface
• Multibrowser support (IE, Firefox, Chrome, Safari)
• RTC support to keep the timer running during times of no power.
• Supports up to 8 user and 1 administrator accounts
• Proactive Overload Protection (POP) automatically powers off outlets when current overloads to protect operating devices

Management

• Power status measurement at the PDU level
• LED indicators for current and IP address at the PDU device level
• Real-time current, voltage, and kWH displayed in a browsed-based UI for monitoring at the PDU level
• Current and voltage threshold setting
• Naming support for outlets
• User outlet access assignment on an outlet-by-outlet basis.
• Event logging and syslog support
• Upgradeable firmware
• Multilanguage support: English, German, Traditional Chinese, Simplified Chinese, Japanese, French, Spanish, Italian

Security

• Two-level password security
• Strong security features include password protection and advanced encryption technologies 128 bit SSL
• Remote authentication support: RADIUS

eco Sensors Energy Management Software

• Automatic discovery of all PE devices within the same intranet
• Remote real-time power measurement and monitoring
• Remote real-time power outlet management
• Remote real-time environment sensor monitoring
• Plotting/Monitoring of all PE devices
• Exceed threshold alert through SMTP and Syslog
• Power Analysis Report
