All stock codes associated to this product
JL073A, 3116795, 888793596593
The Aruba 3810 Switch Series provides performance and resiliency for the mobile-first campus network. Based on a powerful ProVision ASIC and ready for high-speed APs with HPE Smart Rate multi-gigabit Ethernet, the Aruba 3810 delivers a better application experience with low latency, virtualization with resilient stacking technology, and line rate 40GbE for plenty of back haul capacity.The Aruba 3810 has comprehensive Layer 3 features, right size deployment models, and is SDN ready with OpenFlow support.Features
Performance and Power for the Mobile-First CampusThe Aruba 3810 Switch Series is an industry leading mobile campus access solution for enterprises, SMBs, and branch office networks. With HPE Smart Rate multi-gigabit ports for high speed 802.11ac devices, the Aruba 3810 will prepare your network for tomorrow.
HPE Smart Rate ports support multi-gigabit Ethernet speeds (1, 2.5, 5, and 10 gigabit Ethernet) on existing cabling for cost-effective and convenient network upgrades with no rip and replace of cabling.
Delivers consistent wired and wireless user experience by supporting unified management tools such as ClearPass Policy Manager and AirWave Network Management. Provides optimal configuration automatically when connected to Aruba APs for PoE priority, VLAN configuration, and rogue AP containment.
Rightsizes deployment and back haul capacity with modular 10GbE and 40GbE uplinks. Full PoE+ provisioning on 48-ports. Dual, redundant, hot-swappable power supplies and innovative backplane stacking technology delivers resiliency and scalability in a convenient 1U form factor.
Advanced Layer 2 and 3 feature set with OSPF, IPv6, IPv4 BGP, robust QoS and policy-based routing are included with no software licensing. With support for OpenFlow, the Aruba 3810 is ready to take advantage of SDN applications such as HPE Network Visualizer, Optimizer, and Protector Applications.
Resiliency and High Availability You Can Depend OnThe Aruba 3810 Switch Series is designed with a ProVision ASIC designed to enable the mobile campus with SDN optimizations, very low latency, increased packet buffering, and adaptive power consumption.
Backplane stacking technology delivers high-performance stacking with up to 336 Gb/s of stacking throughput and increased resiliency. Up to ten Aruba 3810 switches can be stacked in a ring topology or up to five can be stacking in a mesh topology.
Dual hot-swappable power supplies provide power and allow swapping of modules on the fly to reduce impact on the network availability. More performance with selectable queue configurations and associated memory buffering that best meets requirements of prioritized network applications.
Selectable queue configurations enables increased performance by selecting the number of queues and associated memory buffering that best meet the requirements of the network applications.
Uninterrupted switching and routing for improved application experience and enhanced L3 availability. Supports virtual router redundancy protocol (VRRP) allowing groups of two routers to dynamically back each other up to create highly available router environments in both IPv4 and IPv6 networks.

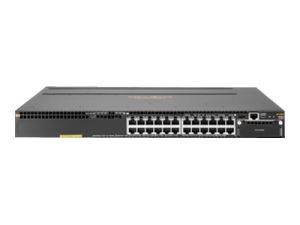

Product Description | HPE Aruba 3810M 24G PoE+ 1-slot Switch - switch - 24 ports - Managed - rack-mountable |
Device Type | Switch - 24 ports - L3 - Managed - stackable |
Enclosure Type | Rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 (PoE+) |
Power Over Ethernet (PoE) | PoE+ |
Performance | Latency (1000Base-T): 2.8 ?s ? Latency (10 Gbps): 1.8 ?s ? Latency (40 Gbps): 1.5 ?s ? Throughput (64-byte packet size): up to 95.2 Mpps ? Routing/switching capacity: 160 Gbps ? Switching fabric bandwidth: 169 Gbps |
Capacity | IPv4 routing table entries: 10000 ? IPv6 routing table entries: 5000 |
MAC Address Table Size | 64K entries |
Jumbo Frame Support | Yes |
Routing Protocol | OSPF, RIP, RIP-1, RIP-2, BGP, VRRP, OSPFv2, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, Bidirectional Forwarding Detection (BFD) |
Remote Management Protocol | RMON, Telnet, SNMP 3, HTTP, SSH, SSH-2, CLI, XRMON |
Features | ARP support, Spanning Tree Protocol (STP) support, Per-VLAN Spanning Tree (PVST), Access Control List (ACL) support, Quality of Service (QoS), Device Link Detection Protocol (DLDP) support, Uni-Directional Link Detection (UDLD), Management Information Base (MIB), Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Class of Service (CoS), sFlow v5, Type of Service (ToS), OpenFlow support, Internet Control Message Protocol (ICMP) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.3at |
Environmental Standards | ENERGY STAR Qualified |
Dimensions (WxDxH) | 44.25 cm x 43.13 cm x 4.39 cm |
Weight | 5.91 kg |
Manufacturer Warranty | Limited lifetime warranty |
