Tenda TEF1106P-4-63W 6-Port 10/100M Desktop Switch with 4-Port
PoE
Overview
Dual uplink port, more convenient for connecting Router and
NVR
TEF1106P-4-63W is an unmanaged PoE switch with 2 uplink ports that can
connect with Router & NVR. Compliant with IEEE 802.3at/af standards, it can
identify PoE-powered devices intelligently. The switch supplies a maximum PoE
power output of 63 W, and 30 W for a single port. TEF1106P-4-63W is an ideal
choice for SMBs, supermarkets and restaurants with small-sized video
surveillance requirement.
Up to 250 meters long distance transmission under the Extend
Modebeyond hundred meters transfer limitation
Due to the complex monitoring environment, the distance from each terminal to
the monitoring center is different, some even more than hundred meters.
TEF1106P-4-63W can support 250 meters data transmission in the Extend mode,
which can save the cost of your project with less devices used.
Excellent lightning Protection
TEF1106P-4-63W supports professional lightning protection of 6KV for uplink
ports & 4KV for power, which can protect the switch from the inductive
lightning strike coming from the thunderstorm weather.

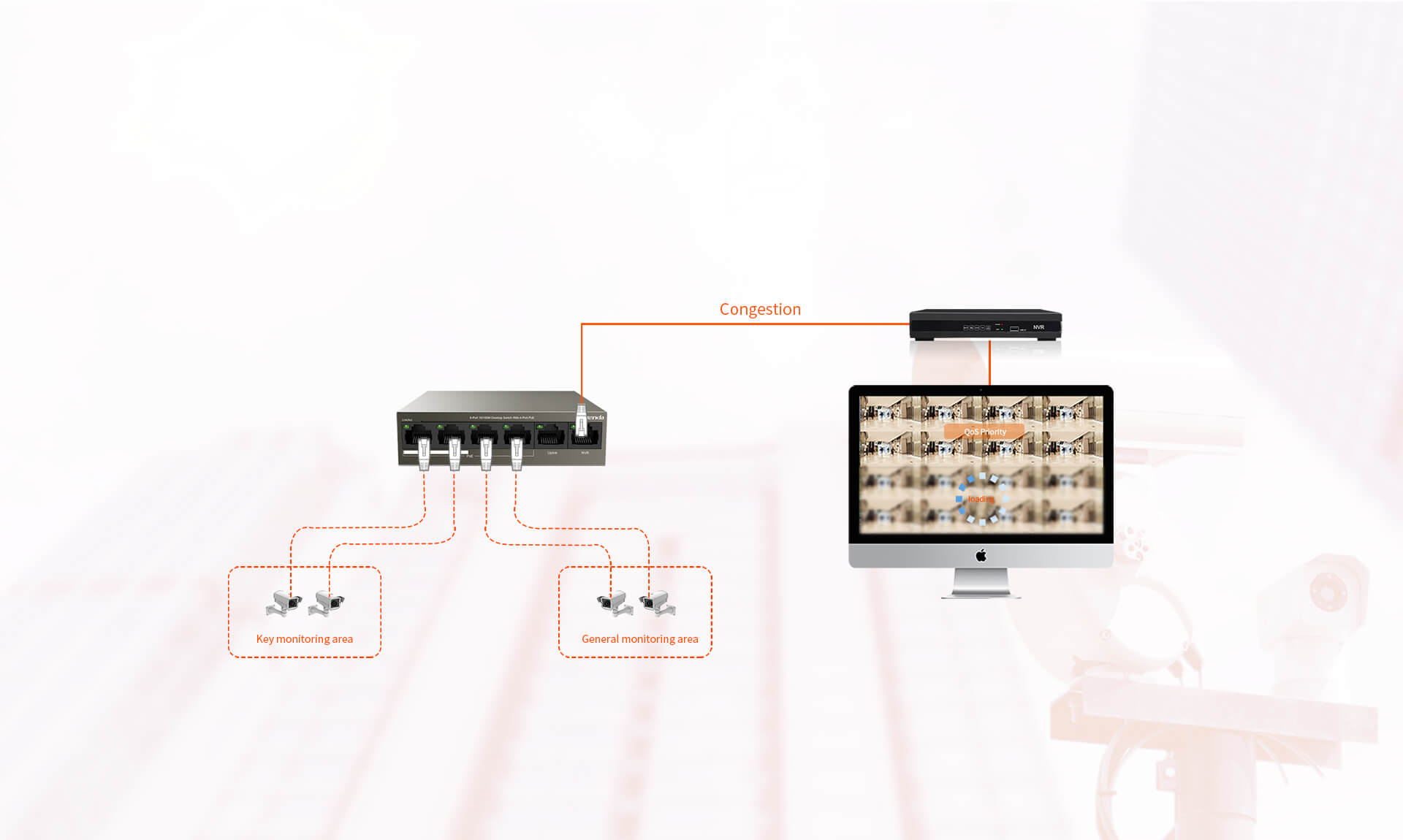

QoS Priority design makes the key video data to be
prioritized
1-2 ports support QoS Priority function, and it will prioritize them when
meeting network congestion, which can ensure the network stable and fluent
transmission of the surveillance video without breaking up.
Specifications
|
Hardware |
|
|
Network
standards |
IEEE
802.3/3u/3x, IEEE 802.3af/at |
|
LED
Indicator |
6
* Link/Ack LED indicators |
|
1
* Power LED indicator |
|
Interfaces |
4*10/100
Base-TX Ethernet ports |
|
(Data/Power) |
|
*10/100
Base-TX Ethernet ports (Data) |
|
Transmission
media |
Recommended:
CAT5/5e UTP or better |
|
Fan
quantity |
N/A |
|
Dimension |
100.0mmx100.0mmx26.0mm |
|
Level
of protection |
Lightning
protection for ports: 6KV |
|
Lightning
protection for power: 4KV |
|
ESD: |
|
Air
discharge: 10kV |
|
Contact
discharge: 8kV |
|
Forwarding
mode |
Store-and-forward |
|
Switch
capacity |
1.2
Gbps |
|
Packet
forwarding rate |
0.89Mpps |
|
Buffer |
448K |
|
MAC
address table |
1
K |
|
Jombo
frame |
N/A |
|
PoE
budget |
Single
port: AF: 15.4W, AT: 30W |
|
Whole
device: 63W |
|
Power
consumption |
/ |
|
Input
voltage |
100240V
AC 50/60Hz |
|
51V
/1.25A DCPower Adapter |
|
Mounting |
Desktop
mounting: support |
|
Wall
mounting: support |
|
Rack
mounting:non-support |
|
Environment |
Operating
Temperature: 0~45 |
|
Storage
Temperature: -40~70 |
|
Operating
Humidity: 10%~90% non-condensing |
|
Storage
Humidity: 5%~90% non-condensing |
|
Certification |
FCC,
CE, RoHS |
|
Software |
|
|
Funtions |
Standard:
the switch functions as a common unmanaged switch and all the ports of the
switch can communicate with each other. |
|
Extend
Mode: If Extend mode is enabled, Port 1-4 will be isolated respectively
(10Mbps auto-negotiation).And the delivery distance of powering and
network data is up to 250m
(10Mbps). |
