Icydock MB720MK-B V2 ToughArmor - Full Metal 4 Bay M.2 NVMe

To unlock the full potential of the PCIe 4.0 NVMe SSD, each drive bay uses a dedicated OCulink (SFF-8612) connector to achieve the bandwidth rate of 64Gb/s, which is two times faster than PCIe 3.0 and 10 times faster than SATA standards. This makes it an ideal solution for data-intensive applications such as autonomous driving, mobile automation, real-time forecast, film editing, and military computing.

A typical M.2 SSD is installed on the motherboard or adapter card that is often secured by tiny screws and requires opening the computer case to access the drives. With the ToughArmor MB720MK-B V2, your M.2 NVMe SSDs are brought to the 5.25" optical bay of the computer system and lets you change the drives without open up the case, making drive maintenance a more efficient and straightforward process

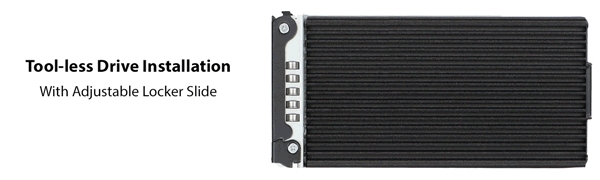

To install the drive, simply place the M.2 PCIe NVMe SSD in the drive tray, adjust the M.2 drive locker to the correct drive length, and you are all set to go. No tools or screws are required.

The M.2 adjustable locker accommodates all standard M.2 PCIe NVMe SSD drives, including 2230 (30mm), 2242 (42mm), 2260 (60mm), 2280 (80mm), and 22110 (110mm), making this drive universal to all M.2 drive length and future-proofing the extra-long M.2 110mm drive.

Grounding your M.2 SSD is essential as swapping drives without proper grounding may lead to hardware damages due to static shocks. With our innovative EMI Grounding Technology, once the drive clips in the M.2 adjustable locker, the drive will be in a constant grounded state throughout the tray, housing, and computer system to ensures your drives are protected from static electrical surges and safe during swapping.

Ensuring the enclosure can be relied upon for many years, the ToughArmor MB720MK-B V2 is capable of holding up in the harshest environment. It comes equipped with rugged, heavy-duty full-metal protection throughout the entire device and tray, making it perfect for industrial devices that may require a flammability rating. The outstanding build quality is suitable for various enterprise systems such as military and law enforcement industries, in-vehicle computers, and manufacturing conditions such as embedded control and factory automation systems.

Considering M.2 NVMe SSD is notorious for generating high temperatures, the drives must be maintained under operating temperatures at all times to prevent degradation of performance. Each drive tray comes equipped with an extra-large high-efficiency aluminum heatsink lid and thermal pad.

Working together with the dual 40mm cooling fans, the heat is further dispersed through the intelligently place ventilation holes throughout the entire enclosure.

The dual cooling fans come with three fan speed settings: High, Low, and off. The user can manually select the proper cooling option to keep the drives at optimal operating temperatures.

An LED status light built into the tray lets you know your drive is powered up and in use. The LED will shut off when no drive is installed to save power.

For an additional physical layer of security, the included key-lock can be used to protect against unwanted access and secure drives in rough environments, such as military systems and in-vehicle PCs.

Never forget which drives belong in what bays. With our individual drive ID labels, you'll always know which drive tray belongs in your RAID array or which drives contains specific files. Freely unplug and rearrange them to better suit your configurations or remove them for a simplified look.

The ToughArmor MB720MK-B V2 supports 15-pin SATA power cables with locking latches. You'll never need to worry about cables unintentionally disconnecting from your enclosure. Once these cables are connected, they will lock and stay in place.
