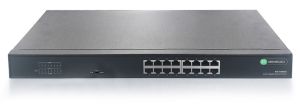

NS-16UG | Serveredge 10/100/100Base TX, 16 Port Gigabit Unmanaged Ethernet

Serveredge 10/100/100Base TX, 16 Port Gigabit Unmanaged Ethernet Switch

Overview

The Serveredge NS-16UG, 10/100/1000Base-TX, 16 Port, Gigabit Unmanaged Ethernet Switch provides easy, reliable, and affordable network connectivity for small to large offices. With the Serveredge unmanaged plug-and play- switched, you can expand your network to multiple devices instantly.

The automated features of this gigabit switch make installation plug-and-play and hassle-free. No configuring is required. Auto MDI / MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10,100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Compact size enclosure makes it ideal for desktops with limited space while it is also rack mountable, dynamic LED lights provide real-time work status and basic fault diagnosis.

FEATURE

• Innovative energy-efficient technology saves power up to 40%
• 100% Data filtering rate eliminates all error packets
• Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
• Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput
• 56Gbps Bandwidth
• Auto-MDI/MDIX eliminates the need for crossover cables
• Supports MAC address auto-learning and auto-aging
• Support the port N-Way Auto-Negotiation, Store and Forward
• Compact size design for desktops, Rack mountable
• Plug and Play design simplifies installation
