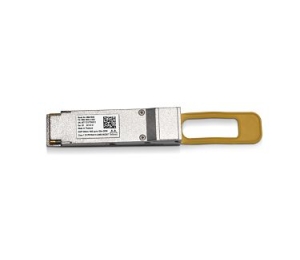

NVIDIA MMA1B00-C100D Optical Transceiver 100GbE QSFP28 MPO
SR4
Overview
100GbE SR4 QSFP28 MMF Optical Transceiver
NVIDIA Networking MMA1B00-C100D is a 4-channel, pluggable, QSFP28, optical
transceiver designed for use in 100 GbE Ethernet links with up to 100 m reach on
multi-mode fiber (MMF). This transceiver incorporates integrated circuit
technology, in order to provide high performance at low power.
MMA1B00-C100D converts 4 input channels of 25 Gb/s electrical data to 4
optical signals at 850 nm. Reversely, the receiver side de-multiplexes 4 optical
inputs into 4 electrical differential output signals. MMA1B00-C100D has
selectable retiming as specified in the SFF-8636 MSA. This enables the
transceiver to be used in both 40 GbE and 100 GbE applications. Digital
diagnostic monitoring functions for temperature, supply voltage, and optical
power are available via the two-wire (I2C) management interface, as specified by
the QSFP28 MSA. The optical interface is a multi-fiber push-on (MPO) connector
with the 4 optical channels/fibers in each direction. The MPO connector is the
un-angled (UPC) type.
Rigorous production testing ensures the best out-of-the-box installation
experience, performance, and durability.
Highlights
- Up to 100 Gb/s data rate
- Selectable retiming for both Tx & Rx
- Programmable Tx input equalizer
- Programmable Rx output amplitude
- Programmable Rx output emphasis
- SFF-8665 compliant QSFP28
- Single 3.3 V supply, hot pluggable
- QSFP28 power class 3 (2.5 W max)
- 2.2 W power dissipation (typ, with retiming)
- Low BER
- Class 1 laser safety
- Up to 100m on OM4 and 70m on OM3 multimode fiber at 100
Gb/s
- Up to 100m on OM3 at 40 Gb/s
- Hot pluggable
- RoHS compliant
- Applications:
- 100GBASE-SR4 100G Ethernet
- 40GBASE-SR4 40G Ethernet
- Qualified for use in Ethernet end-to-end systems
