nVidia DAC Cable IB HDR up to 200Gb/s QSFP56 2m

IMG 1 of 1
Our Price:
$518.65
or quickly purchase this product
Backorder
Part Number:
502571
(?) Brand:
nVidia
Manuf No:
MCP1650-H002E26
MCP1650H002E26
Shipping Weight:
5.3 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
MCP1650H002E26, MCP1650-H002E26, 16N-CABLE-200GB-BLK-2M, 7290108482232

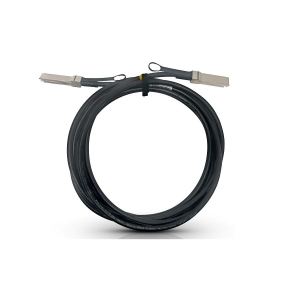

NVIDIA MCP1650-H002E26 DAC Cable IB HDR up to 200Gb/s QSFP56 - 2m



Overview

HDR 200Gb/s QSFP56 Direct Attach Copper Cable

NVIDIA DAC cables are high speed, cost-effective alternatives to fiber optics in 200Gb/s InfiniBand HDR applications.

NVIDIA Networking QSFP56 passive copper cable contains eight high-speed copper pairs, each operating at data rates of up to 50Gb/s. Each QSFP56 port comprises an EEPROM providing product information, which can be read by the host system.

NVIDIA's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. It enables higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.

Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.

Highlights

  • IBTA InfiniBand HDR compliant
  • Up to 200Gb/s data rate
  • 4x 50Gb/s PAM4 modulation
  • SFF-8665 compliant
  • Operating case temperature 0-70C
  • Single 3.3V supply voltage
  • Bit Error Rate (BER) better than 1E-15 with InfiniBand HDR systems
  • Hot pluggable
  • RoHS compliant
  • LSZH (Low Smoke Zero Halogen) jacket
  • LF (Lead Free) HF (Halogen Free) PCB
  • SFF-8636 compliant I2C management interface

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers web site.
