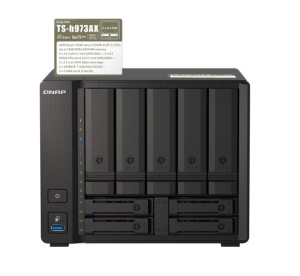

QNAP TS-h973AX Enhance business productivity using the quad-core
9-bay QuTS hero NAS that supports U.2 NVMe SSD and 10GbE/2.5GbE
connectivity
Overview
Featuring an AMD Ryzen V1000 series V1500B quad-core processor and
10GbE/2.5GbE connectivity, the 9-bay TS-h973AX packs a high-capacity hybrid
storage infrastructure into a compact physical footprint. With five 3.5-inch
SATA 6Gbps drive bays, two 2.5-inch U.2 NVMe SSD slots (Slot 1 & 2 support
both U.2 NVMe and SATA SSDs ), and two 2.5-inch SATA 6Gbps SSD slots, the
TS-h973AX can benefit from SSD caching to boost IOPS-intensive applications.
With the ZFS-based QuTS hero operating system, the TS-h973AX ensures data
integrity and supports block-level inline data deduplication and compression,
near-limitless snapshots, and real-time SnapSync to satisfy mission-critical
file servers, virtualization servers, collaborative video editing, and efficient
data backup and recovery with business-class performance, job reliability, and
lower overall cost.
- Install high-performance U.2 NVMe PCIe Gen 3 x4 SSDs or SATA 6Gb/s SSDs in
the dedicated SSD slots for cache acceleration and improved random
I/O.
- One 10GBASE-T Multi-Gig and two 2.5GbE LAN ports accelerate
virtualization, intensive file access, large backup/restoration tasks, and
media transfer.
- Experience a business-class backup center, supporting backup/restore of
cloud data and VMs (including Google Workspace, Microsoft 365, VMware and
Hyper-V).
- Host multiple virtual machines and containers to run a wide range of
applications on the TS-h973AX.
- Cloud storage gateways realize hybrid cloud applications by working with
the cache space reserved on NAS to ensure low-latency data access to the
cloud.
- Flexibly scale your total storage capacity to match your business growth
by connecting USB expansion enclosures (TR series JBOD).
Specifications
|
CPU |
AMD
Ryzen Embedded V1500B 4-core/8-thread 2.2 GHz
processor |
|
CPU
Architecture |
64-bit
x86 |
|
Floating
Point Unit |
Yes |
|
Encryption
Engine |
(AES-NI) |
|
System
Memory |
32
GB SO-DIMM DDR4 (2 x 16 GB) |
|
Maximum
Memory |
64
GB (2 x 32 GB) |
|
Memory
Slot |
2
x SO-DIMM DDR4 |
|
Support
optional ECC memory |
|
For
dual-DIMM configuration, you must use a pair of identical DDR4
modules. |
|
Flash
Memory |
5GB
(Dual boot OS protection) |
|
Drive
Bay |
5
x 3.5-inch + 4 x 2.5-inch |
|
The
system is shipped without HDD/SSD. |
|
For
the HDD/SSD compatibility list, please
visit https://www.qnap.com/compatibility/ |
|
Drive
Compatibility |
3.5-inch
bays: |
|
3.5-inch
SATA hard disk drives |
|
2.5-inch
SATA hard disk drives |
|
2.5-inch
SATA solid state drives |
|
|
2.5-inch
bays: |
|
2.5-inch
SATA hard disk drives |
|
2.5-inch
SATA solid state drives |
|
2.5-inch
U.2 NVMe PCIe Gen3 x4 solid state drives (2.5-inch Bay #1 & #2)
|
|
*
2.5-inch bay #1 & #2 support either U.2 NVMe SSDs or SATA 6Gb/s
SSDs. |
|
**
U.2 NVMe solid-state drives can only be installed in 2.5-inch bay numbers
1 and 2. Installing these drives in other bays will damage the drive
connectors. |
|
Hot-swappable |
Yes |
|
SSD
Cache Acceleration Support |
Yes |
|
2.5
Gigabit Ethernet Port (2.5G/1G/100M) |
2 |
|
5
Gigabit Ethernet Port (5G/2.5G/1G/100M) |
Optional
via the QNA-UC5G1T USB to 5GbE network adapter |
|
10
Gigabit Ethernet Port |
1
x 10GBASE-T (10G/5G/2.5G/1G/100M) |
|
Wake
on LAN (WOL) |
Yes |
|
Jumbo
Frame |
Yes |
|
USB
3.2 Gen 2 (10Gbps) Port |
1
x Type-C USB 3.2 Gen 2 |
|
3
x Type-A USB 3.2 Gen 2 |
|
Form
Factor |
Tower |
|
LED
Indicators |
HDD
1-5, SSD 1-4, Power/Status, LAN, USB |
|
Buttons |
Power,
Reset, USB Copy |
|
Dimensions
(HxWxD) |
182.65
x 224.6 x 224.1 mm |
|
Weight
(Net) |
3.52
kg |
|
Weight
(Gross) |
5.12
kg |
|
Operating
temperature |
0
- 40 C (32F - 104F) |
|
Storage
Temperature |
-20
- 70C (-4F - 158F) |
|
Relative
Humidity |
5-95%
RH non-condensing, wet bulb: 27C (80.6F) |
|
Power
Supply Unit |
External,
120 W, AC 100 to 240 V |
|
Power
Consumption: HDD Sleep Mode |
41.2
W |
|
Power
Consumption: Operating Mode, Typical |
55.41
W |
|
Tested
with drives fully populated. |
|
Fan |
1
x 140mm, 12VDC |
|
Sound
Level |
22.9
db(A) |
|
System
Warning |
Buzzer |
|
Kensington
Security Slot |
Yes |
|
Max.
Number of Concurrent Connections (CIFS) - with Max.
Memory |
2000 |
