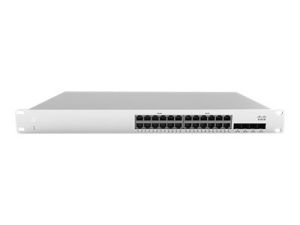

Product Description | Cisco Meraki Cloud Managed MS210-24 - switch - 24 ports - Managed - rack-mountable |
Device Type | Switch - 24 ports - Managed - stackable |
Enclosure Type | Rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 + 4 x Gigabit SFP (uplink) |
Performance | Stacking bandwidth: 80 Gbps ? Switching capacity: 128 Gbps ? Forwarding rate: 41.67 Mpps |
MAC Address Table Size | 16K entries |
Jumbo Frame Support | 9578 bytes |
Remote Management Protocol | SNMP |
Features | Flow control, auto-negotiation, ALERT notification, auto-uplink (auto MDI/MDI-X), Syslog support, Broadcast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Access Control List (ACL) support, fanless, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Port Security, DHCP client, static routing, 802.1x authentication, crossover detection, Bridge protocol data unit (BPDU), Role-Based Access Control (RBAC), Root Guard |
Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP) |
Power | AC 120/230 V (50 - 60 Hz) |
Dimensions (WxDxH) | 48.46 cm x 25 cm x 4.38 cm |
Weight | 2.73 kg |
Manufacturer Warranty | Limited lifetime warranty |
