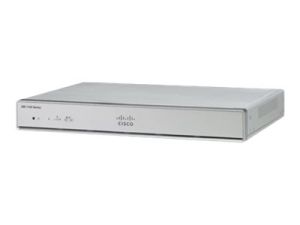

| Product Description | Cisco Integrated Services Router 1111 - router - WWAN - desktop |
| Device Type | Router - wireless cellular modem - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Digital Signaling Protocol | ADSL2, ADSL2+, VDSL2 |
| Mobile Communication Protocol | UMTS, HSPA+, DC-HSPA+, LTE Advanced, FDD LTE, TDD LTE |
| Cellular Band | TD-SCDMA 39 |
| WAN Ports Qty | 3 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, HDLC, Frame Relay, PPP, MLPPP, MLFR |
| Performance | Crypto performance: 150 Mbps |
| Network / Transport Protocol | IPSec, PPPoE, DNS, L2TPv3 |
| Routing Protocol | OSPF, RIP, IS-IS, RIP-1, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, PIM-SSM, IPv4-to-IPv6 Multicast, RSVP |
| Remote Management Protocol | SNMP, RMON |
| Features | DHCP support, power over Ethernet (PoE), load balancing, MPLS support, VLAN support, Syslog support, IPv6 support, Dying Gasp support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), SMS alert, Bidirectional Forwarding Detection (BFD), IPv4 support, NetFlow, Maximum Ratio Combining (MRC), Hot Standby Router Protocol (HSRP) support, Call Home function support, IPFIX, Generic Routing Encapsulation (GRE), automatic Internet Key Exchange, cyclic shift diversity (CSD), Location ID Separation Protocol (LISP), packet aggregation A-MPDU, packet aggregation A-MSDU, Application Visibility and Control (AVC), 3G MIB, failover protection, Field Programmable Gate Array, AES encryption, policy based routing, Authentication, Authorization and Accounting (AAA), Dynamic Frequency Selection (DFS), Hierarchical Quality of Service (HQoS), Layer 3 VPN (L3VPN) support, Embedded Event Manager (EEM), Multigroup HSRP (MHSRP), Ethernet Virtual Connections (EVC), Cisco IOS IP Service-Level Agreements (IPSLA), Network-Based Application Recognition (NBAR), Multichannel-Interface-Processor (MIP), dual SIM support, DNA support |
| Compliant Standards | IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.11r |
| Power | AC 120/230 V (50 - 60 Hz) |
| Dimensions (WxDxH) | 32.3 cm x 24.4 cm x 4.4 cm |
| Weight | 2.59 kg |
