All stock codes associated to this product
JL678A, JL678A#ABG, 5473010

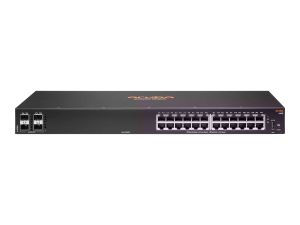

Aruba 24 Ports Ethernet Switch - 3 Layer Supported - Modular - Twisted Pair, Optical Fiber - 1U High - Rack-mountable, Wall Mountable
Aruba 6100 Switch Series
The Aruba CX 6100 Switch Series is modern family of entrylevel access switches ideal for enterprise branch offices andSMB networks. Optimized for reliable, simple and secure access, the CX 6100 switches provide a convenient wired access solution for enterprise networks supporting IoT, mobile and cloud applications.
The CX 6100 series is based on the Aruba ASIC architecture with the programmable AOS-CX operating system used across the entire Aruba CX portfolio for a more consistent, more efficient operator experience. This layer 2 switch series has convenient built-in high speed uplinks with up to 370W of PoE to support IoT devices such as security cameras and wireless APs, and includes acompact and fanless model ideal for use in quiet work spaces. With robust QoS, support for static routing, and IPv6, the CX 6100 also simplifies ownership with no software licensing requirements..
Network &Communication
I/O Expansions
| Expansion Slot Type | SFP+ |
| Number of Total Expansion Slots | 4 |
| Number of SFP+ Slots | 4 |
Interfaces/Ports
| Modular | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 24 |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Expansion Slot |
| 24 x Gigabit Ethernet Network |
Media &Performance
| Network Technology | 10/100/1000Base-T |
| 10GBase-X |
| Ethernet Technology | 10 Gigabit Ethernet |
| Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Twisted Pair |
General Information
| Product Type | Ethernet Switch |
| Manufacturer Part Number | JL678A |
| Manufacturer Website Address | https://www.hpe.com/au/ |
| Manufacturer | Hewlett Packard Enterprise |
| Product Name | 6100 24G 4SFP+ Switch |
| Product Series | 6100 |
| Brand Name | Aruba |
Physical Characteristics
| Weight (Approximate) | 2.62 kg |
| Form Factor | Rack-mountable |
| Wall Mountable |
| Height | 43.9 mm |
| Width | 442 mm |
| Depth | 201.2 mm |
| Compatible Rack Unit | 1U |
Power Description
| Input Voltage | 120 V |
| 230 V |
| Power Source | Power Supply |
| Frequency | 60 Hz |
| 50 Hz |
| Power Consumption | 33 W |
| Number of Power Supplies Supported | 1 |
| Number of Power Supplies Installed | 1 |
