All stock codes associated to this product
JL260A, 190017062532

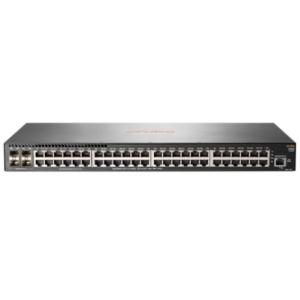

HPE 2930F 48G 4SFP 48 Ports Manageable Layer 3 Switch - 3 Layer Supported - Modular - Twisted Pair, Optical Fiber - 1U High - Rack-mountable, Desktop
The Aruba 2930F Switch Series is designed for customer creating digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These basic Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave and are ideal for enterprise edge, SMB and branch offices.A powerful Aruba ProVision ASIC delivers performance and value supporting the latest SDN applications with future proof programmability. It supports 10GbE uplinks, PoE+, robust QoS, and RIP routing.FeaturesHigh-Performance Access Layer SwitchesThe Aruba 2930F Switch Series provides performance, security, and ease of use for enterprise edge, SMB, and branch office networks.
Delivers a consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager and Airwave Network Management. Provides optimal configuration automatically when connected to Aruba access points for PoE priority, VLAN configuration, and rogue AP containment.
Convenient built-in 1GbE or 10GbE uplinks and PoE+ models deliver right-size network access performance.
Robust basic Layer 3 feature set includes static and RIP routing, ACLs, sFlow, IPv6 with no software licensing required.
Designed with a powerful ProVision ASIC and support for OpenFlow, the Aruba 2930F is ready to take advantage of SDN applications such as HPE Network Visualizer, Optimizer, and Protector Software products.
Performance and Power at the EdgeThe Aruba 2930F Switch Series is designed with a powerful Aruba ProVision ASIC, to enable the mobile campus with SDN optimizations, low latency, increased packet buffering, and adaptive power consumption.
Increase performance with selectable queue configurations and associated memory buffering that meets your specific network application requirement. Supports up to 370 W of internal PoE+ power for wireless access points, cameras and phones.
Security and Quality of Service You Can Rely onThe Aruba 2930F Switch Series includes security and quality of services features to build a network that meets ever-changing corporate policies and compliances while protecting your data from both inside and outside attacks.
Flexible authentication options include standards based security protocols such as 802.1X, MAC and Web Authentication, to enhance security and policy-driven application authentication.
Powerful, multilevel-access security controls include source-port filtering, RADIUS/TACACS+, SSL, Port Security, and MAC address lockout.
Simplify with Integrated Wired/Wireless ManagementThe Aruba 2930F Switch Series supports Aruba ClearPass Policy Manager for unified and consistent policy between wired and wireless users and simplifies implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.
Supports Aruba Airwave Network Management software to provide common platform for Zero Touch Provisioning management, and monitoring for wired and wireless network devices.
RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.
Out-of-band Ethernet management port keeps management traffic segmented from your network data traffic.
Management &Protocols
Miscellaneous
Environmentally Friendly | Yes |
Network &Communication
Power Description
I/O Expansions
Expansion Slot Type | SFP |
Number of Total Expansion Slots | 4 |
Number of SFP Slots | 4 |
Shared SFP Slot | No |
Media &Performance
Network Technology | 10/100/1000Base-TX |
1000Base-X |
Ethernet Technology | Gigabit Ethernet |
Media Type Supported | Optical Fiber |
Twisted Pair |
Interfaces/Ports
Modular | Yes |
Uplink Port | Yes |
Stack Port | No |
Total Number of Network Ports | 48 |
Port/Expansion Slot Details | 4 x Gigabit Ethernet Uplink |
48 x Gigabit Ethernet Network |
Physical Characteristics
Weight (Approximate) | 3.10 kg |
Form Factor | Desktop |
Rack-mountable |
Height | 43.9 mm |
Width | 442.5 mm |
Depth | 246.3 mm |
Compatible Rack Unit | 1U |
General Information
Product Type | Layer 3 Switch |
Manufacturer Part Number | JL260A |
Manufacturer Website Address | https://www.hpe.com/au/ |
Packaged Quantity | 1 |
Manufacturer | Hewlett Packard Enterprise |
Product Model | 2930F 48G 4SFP |
Product Name | Aruba 2930F 48G 4SFP Switch |
Brand Name | HPE |
