All stock codes associated to this product
TVS672Xi38G, TVS-672X-i3-8G, QN15384, TVS672XI38G, TVS-672X-I3-8G, TVS672Xi38g, TVS-672X-i3-8g, BAQNTVS672XI38G, BAQN-TVS-672X-I3-8G

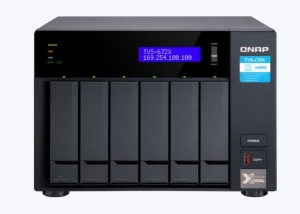

QNAP TVS-672X-I3-8G Intel Core i3-8100T quad-core 3.1 GHz processor,
8 GB memory (1 x 8 GB)
Overview
Powered by an Intel Core i3/i5 processor, the high-performance TVS-672X NAS
features built-in 10GbE connectivity for boosted virtualization performance and
streamlined backup and application workflows from multiple workstations. The
TVS-672X also supports M.2 NVMe SSDs for cache acceleration, PCIe expansion,
multi-cloud backup, 4K HDMI 2.0 output and real-time transcoding, alongside
expandable storage capacity and feature-rich apps to perform as a
cost-efficient, reliable, and multifunctional NAS solution.
- 5-speed 10GBASE-T RJ45 connectivity accelerates virtualization, intensive
file access, large backup/restoration tasks, and media transfer.
- Dual M.2 PCIe Gen 3 x2 NVMe SSD slots enable cache acceleration or SSD
storage pools for improved performance.
- PCIe expansion allows for 2.5/5/10/25GbE network cards, QM2 card, QXP
storage expansion cards, or graphics cards.
- 4K media playback and real-time transcoding; display multimedia content
saved on the NAS via HDMI 2.0 (4K @60Hz) output.
- Host multiple virtual machines and containers to run a wide range of
applications and services.
- A business-class backup center supporting backup/restore of cloud data and
VMs (including Google Workspace, Microsoft 365, VMware and Hyper-V).
Specifications
|
CPU |
Intel
Core i3-8100T 4-core/4-thread 3.1 GHz
Processor |
|
CPU
Architecture |
64-bit
x86 |
|
Graphic
Processors |
Intel
UHD Graphics 630 |
|
Floating
Point Unit |
Yes |
|
Encryption
Engine |
Yes
(AES-NI) |
|
Hardware-accelerated
Transcoding |
Yes |
|
System
Memory |
8
GB SODIMM DDR4 (1 x 8 GB) |
|
Maximum
Memory |
64
GB ( 2 x 32 GB) |
|
Memory
Slot |
2
x SO-DIMM DDR4 |
|
Flash
Memory |
5GB
(Dual boot OS protection) |
|
Drive
Bay |
6
x 3.5-inch SATA 6Gb/s, 3Gb/s |
|
Drive
Compatibility |
3.5-inch
bays: |
|
3.5-inch
SATA hard disk drives |
|
2.5-inch
SATA hard disk drives |
|
2.5-inch
SATA solid state drives |
|
Hot-swappable |
Yes |
|
M.2
Slot |
2
x M.2 2280 PCIe Gen3 x2 slots |
|
SSD
Cache Acceleration Support |
Yes |
|
GPU
pass-through |
Yes |
|
Gigabit
Ethernet Port (RJ45) |
2 |
|
10
Gigabit Ethernet Port |
1
x 10GBASE-T (10G/5G/2.5G/1G/100M) |
|
Wake
on LAN (WOL) |
Yes |
|
Jumbo
Frame |
Yes |
|
PCIe
Slot |
2 |
|
Slot
1: PCIe Gen 3 x16 (CPU) |
|
Slot
2: PCIe Gen 3 x4 (PCH) |
|
USB
3.2 Gen 1 port |
1 |
|
USB
3.2 Gen 2 (10Gbps) Port |
2
x Type-C USB 3.2 Gen 2 10Gbps |
|
2
x Type-A USB 3.2 Gen 2 10Gbps |
|
IR
Sensor |
Yes (QNAP
RM-IR004 & MCE) |
|
HDMI
Output |
1,
HDMI 2.0 (up to 3840 x 2160 @ 60Hz) |
|
Form
Factor |
Tower |
|
LED
Indicators |
HDD
1-6, Status, LAN, USB port, M.2 port |
|
LCD
Display/ Button |
Yes |
|
Buttons |
Power,
Reset, USB Copy |
|
Dimensions
(HxWxD) |
188.2
264.3 279.6 mm |
|
Weight
(Net) |
6.553
kg |
|
Weight
(Gross) |
8.07
kg |
|
Operating
temperature |
0
- 40 C (32F - 104F) |
|
Storage
Temperature |
-20
- 70C (-4F - 158F) |
|
Relative
Humidity |
5-95%
RH non-condensing, wet bulb: 27C (80.6F) |
|
Power
Supply Unit |
250W,
100-240V |
|
Power
Consumption: HDD Sleep Mode |
26.52
W |
|
Power
Consumption: Operating Mode, Typical |
45.6
W |
|
Tested
fully populated with WD10EFRX hard drives. |
|
Fan |
System
fan: 1 x 120mm, 12VDC |
|
CPU
fan: 2 x 60mm blower fan |
|
System
Warning |
Voice
prompts or Buzzer |
|
Kensington
Security Slot |
Yes |
|
Max.
Number of Concurrent Connections (CIFS) - with Max.
Memory |
2500 |
