All stock codes associated to this product
VLUCM2V, VL-UCM2-V, II348401

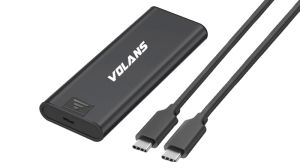

VOLANS VL-UCM2-V Aluminium NVMe PCIe (M Key) M.2 SSD to USB3.1 Gen 2
Type C Enclosure 10Gbps
Overview
- Designed for M Key NVM Express (NVMe) based M.2 SSDs only
- Convert an NVMe M.2 SSD to a USB 3.1 external drive
- Premium aluminium exterior with small, portable design
- Latest USB 3.1 Gen 2 interface up to 10Gbps super speed transfer
rate
- Support USB Super-speed Gen2(10Gbps) / Super-speed
Gen1(5Gbps)/High-speed(480Mbps)/Full-speed(12Mbps) operation.
- Supports M.2 modules in format 2280, 2260, 2242 and 2230, up to
2TB
- Fits size30*22mm/42*22mm/60*22mm/80*22mm
- LED power/status indicators
- Easy installation
- Support windows 7/8/10, Mac10.x, Linux
2.4.2 and above
Specifications
Model
Code |
VL-UCM2-V |
Description |
USB
3.1 to M.2 Type C PCIe NVMe SSD Mini External
Enclosure |
Main
Chip |
JMS583 |
Interfaces |
Supports
USB Super-speed plus(10Gbps)/ |
USB
Super-speed(5Gbps)/ |
High-speed(480Mbps)/Full-speed(12Mbps)
operation. |
Compliance
with USB Mass Storage Class, Bulk-Only Transport
Specification |
Application |
Supports
M.2 modules in format 2280, 2260, 2242 and 2230 with key M based on PCIe
(NVMe) ONLY, up to 2TB. DOES NOT SUPPORT SATA
SSD!! |
Dimensions |
106.5
(L) x41 (W) x 12.5(H) mm |
Material |
Aluminum |
Cable |
USB-C
(M) to USB-C (M) cable |
LED
Indicator |
Power
and HDD activity |
Power
Requirements |
DC5V
supplied by the Computer |
OS
Requirements |
Windows2000
/ XP / VISTA/7/8/10, Mac OS 9.X and
Linux2.4.2. |
