All stock codes associated to this product
JL813A, 5452733, 190017523712

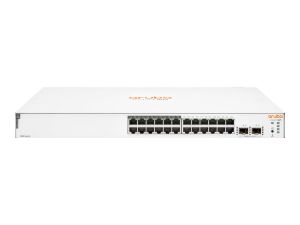

Aruba Instant On 1830 24 Ports Manageable Ethernet Switch - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - 2 SFP Slots - Power Supply - 13.40 W Power Consumption - 195 W PoE Budget - Twisted Pair - PoE Ports - Desktop, Surface Mount, Table Top, Wall Mountable, Under Table
Aruba Instant On 1830 Switch Series
Small businesses continue to face challenges to stay afloat as the world wrestles with this multi-year pandemic. They need day-today tasks to be simple to keep operations running smoothly, and with increasing costs making it more expensive than ever to stay in business, they need affordable solutions.
Fast, reliable, and secure network connections play a critical role in helping businesses maintain a competitive advantage. At the same time, with constrained resources and a growing number of interconnected devices, getting the most valuable networking solution for the money has become a basic need for budget-strapped small businesses.
Aruba Instant On 1830 Switch Series is an affordable, easy to deploy, smart-managed switch series for small businesses looking for a cost-effective ways to keep up with evolving network demands. These are entry-level switches offering Layer 2 switching capabilities, Gigabit connectivity along with flexible management modes - all at an affordable price point.
Management &Protocols
I/O Expansions
| Expansion Slot Type | SFP |
| Number of Total Expansion Slots | 2 |
| Number of SFP Slots | 2 |
Media &Performance
| Network Technology | 10/100/1000Base-T |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
Interfaces/Ports
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 24 |
| Port/Expansion Slot Details | 2 x Expansion Slots |
| 24 x Gigabit Ethernet PoE |
Network &Communication
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3z |
| IEEE 802.1w |
| IEEE 802.3 |
| IEEE 802.1p |
| IEEE 802.3ac |
| IEEE 802.3u |
| IEEE 802.3az |
| IEEE 802.3x |
| IEEE 802.3at |
| IEEE 802.3af |
| IEEE 802.1D |
| IEEE 802.1ab |
| IEEE 802.3ad |
| IEEE 802.3ab |
| IEEE 802.1Q |
General Information
| Product Type | Ethernet Switch |
| Manufacturer Part Number | JL813A |
| Manufacturer Website Address | https://www.hpe.com/au/ |
| Manufacturer | Hewlett Packard Enterprise |
| Product Name | Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch |
| Product Line | Instant On |
| Product Series | 1830 |
| Brand Name | Aruba |
Power Description
| Input Voltage | 120 V AC |
| 230 V AC |
| Power Source | Power Supply |
| Frequency | 60 Hz |
| 50 Hz |
| Power Consumption | 13.40 W |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 195 W |
Physical Characteristics
| Weight (Approximate) | 3.47 kg |
| Form Factor | Under Table |
| Surface Mount |
| Wall Mountable |
| Desktop |
| Table Top |
| Height | 43.9 mm |
| Width | 443 mm |
| Depth | 253 mm |
