MMA2P00-AS | nVidia Optical Transceiver 25GbE SFP28 LC-LC SR

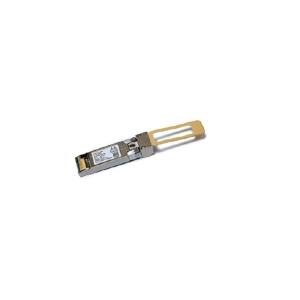

NVIDIA MMA2P00-AS Optical Transceiver 25GbE SFP28 LC-LC SR

Overview

MMA2P00-AS is a pluggable SFP28 optical transceiver designed for use in 25GbE Ethernet. It incorporates integrated circuit technology in order to provide high performance at low power. The transceiver operates over a pair of multi-mode fibers (MMF), using a nominal wavelength of 850nm, and is SFF-8402 compliant.

MMA2P00-AS has a standard SFP28 connector on the electrical side towards the host system supporting IEEE 802.3bm. The optical interface is composed of two optical channels/fibers, one in each direction, intended for a multi-mode optical cable connected via standard LC connectors. Each channel/fiber operates at signaling rates up to 25.78125GBd.

The transceiver offers selectable retiming for both its optical transmitter and receiver for the 25Gb/s rate, and it also supports lower bit rates without. The transmitter has programmable input equalizers and input squelch function, while the receiver has programmable output amplitude and pre-emphasis.

Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability

Highlights

• Selectable retiming for both Tx and Rx
• Programmable Rx output emphasis
• Programmable Tx input equalizer
• SFF-8402 compliant SFP28
• 3.3V power supply
• SFP28 power level 1
• 0.7W power dissipation (typ., with retiming)
• Low BER
• Class 1 laser safety
• Up to 100m on OM4 and 70m on OM3 multimode fiber at 25Gb/s
• Up to 100m on OM3 at 10Gb/s
• Hot pluggable
• RoHS compliant
• IEEE 802.3 25GBASE-SR compliant
• IEEE 802.3 10GBASE-SR compliant
• SFF-8472 compliant I2C management interface
• 25G to 10G rate selection by turning off CDR
