All stock codes associated to this product
TS-864EU-4G, TS864EU4G, 4711103081051

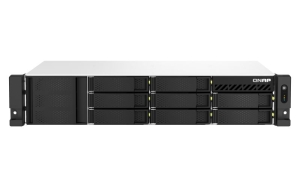

QNAP TS-864eU-RP Short depth rackmount 2.5GbE NAS, space-efficient
design with PCIe expandability and HDMI output
Overview
The TS-864eU-RP is powered by Intel Celeron N5095/5105 quad-core processor
(burst up to 2.9 GHz). The space-efficient short depth design makes it easy to
install in small media cabinets or places with a lot of cabling. With expandable
storage capacity and feature-rich apps, the TS-864eU-RP surpasses the previous
generation.
2.5GbE connectivity
Up to 5 Gbps transfer speeds can be achieved by setting port trunking with
the two built-in 2.5GbE ports.
HDMI Output
Supports 4K media playback and real-time transcoding.
PCIe expandability
One PCIe slots allow for installing 2.5/5/10GbE adapters, QM2 cards, or USB
3.2 Gen 2 (10Gbps) expansion cards.
USB interface
Two USB 3.2 Gen 2 10Gbps ports for faster data transfer.
Backup and data recovery
Protects PC/Macs, virtual machines, software containers, cloud data, and SaaS
services.
Hybrid cloud applications
Cloud storage gateways realize hybrid cloud applications by working with the
cache space reserved on NAS.
Specifications
|
CPU |
Intel
Celeron N5105/N5095 4-core/4-thread processor, burst up to 2.9
GHz |
|
CPU
Architecture |
64-bit
x86 |
|
Graphic
Processors |
Intel
UHD Graphics |
|
Floating
Point Unit |
Yes |
|
Encryption
Engine |
Yes (AES-NI) |
|
Hardware-accelerated
Transcoding |
Yes |
|
System
Memory |
4
GB SO-DIMM DDR4 (1 x 4 GB) |
|
Maximum
Memory |
16
GB (2 x 8 GB) |
|
Memory
Slot |
2
x SO-DIMM DDR4 |
|
When
installing two memory modules, please ensure that they are the same size
and ideally use the same type of RAM for both memory
slots. |
|
Flash
Memory |
4GB
(Dual boot OS protection) |
|
Drive
Bay |
8
x 3.5-inch SATA 6Gb/s, 3Gb/s |
|
Drive
Compatibility |
3.5-inch
bays: |
|
3.5-inch
SATA hard disk drives |
|
2.5-inch
SATA hard disk drives |
|
2.5-inch
SATA solid state drives |
|
Hot-swappable |
Yes |
|
M.2
Slot |
Optional
via a PCIe adapter |
|
SSD
Cache Acceleration Support |
Yes |
|
2.5
Gigabit Ethernet Port (2.5G/1G/100M) |
2
(also support 10M) |
|
Wake
on LAN (WOL) |
Yes |
|
Jumbo
Frame |
Yes |
|
PCIe
Slot |
1 |
|
Slot
1: PCIe Gen 3 x2 |
|
USB
2.0 port |
2 |
|
USB
3.2 Gen 2 (10Gbps) Port |
2
x Type A USB 3.2 Gen 2 |
|
HDMI
Output |
1,
HDMI 1.4b |
|
Form
Factor |
2U
Rackmount |
|
LED
Indicators |
HDD
1-8, Status, LAN, Expansion, Power |
|
Buttons |
Power,
Reset |
|
Dimensions
(HxWxD) |
88.6
x 482.14 x 346.43 mm |
|
Weight
(Net) |
7.9
kg |
|
Weight
(Gross) |
10.47
kg |
|
Operating
temperature |
0
- 40 C (32F - 104F) |
|
Storage
Temperature |
-20
- 70C (-4F - 158F) |
|
Relative
Humidity |
5-95%
RH non-condensing, wet bulb: 27C (80.6F) |
|
Power
Supply Unit |
300W
(x2), 100-240V |
|
Power
Consumption: HDD Sleep Mode |
31.742
W |
|
Power
Consumption: Operating Mode, Typical |
55.83
W |
|
Tested
with drives fully populated. |
|
Fan |
2
x 80mm, 12VDC |
|
System
Warning |
Buzzer |
|
Max.
Number of Concurrent Connections (CIFS) - with Max.
Memory |
1500 |
