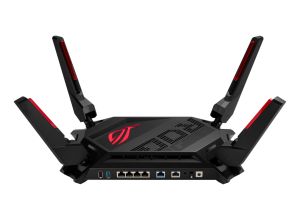

ASUS ROG Rapture GT-AX6000 Dual-Band WiFi 6 (802.11ax) Gaming Router

Model Name

GT-AX6000

Network Standard

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n

IEEE 802.11ac

IEEE 802.11ax

IPv4

IPv6

Product Segment

AX6000 ultimate AX performance

AX technology

Yes

Data Rate

2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps

5GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps

Antenna

External antenna x 4

Transmit/Receive

2.4 GHz 4 x 4

5 GHz 4 x 4

Processor

2.0 GHz quad-core processor

Memory

256 MB Flash, 1 GB RAM

Boosts speed

OFDMA (Orthogonal Frequency Division Multiple Access), Beamforming: standard-based and universal, 1024-QAM high data rate, 20/40/80/160 MHz bandwidth,

Operating Frequency

2.4G Hz / 5 GHz

Ports

RJ45 for 2.5 Gigabits BaseT for WAN/LAN x 1, RJ45 for 2.5 Gigabits BaseT for LAN x 1, RJ45 for Gigabits BaseT for LAN x 4, USB 3.2 Gen 1 x 1, USB 2.0 x 1

Button

WPS Button, Reset Button, Power Button, LED Control Button

LED Indicator

Power x 1 2.4GHz x 1 5GHz x 1 2.5G WAN x 1 2.5G LAN x 1 LAN x 1 WPS x 1

Power Supply

AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 2.37 A current or 19.5 V with max. 2.31 A current

Package content

GT-AX6000 WiFi 6 Dual-Band Gaming Router RJ-45 cable Power Adapter Quick Start Guide Warranty Card

Product Weight (g)

1121.4 g

AiMesh

AiMesh : Yes

Primary AiMesh router : Yes

AiMesh node : Yes

Router APP

ASUS Router APP : Yes

Game

Game Boost/acceleration : Yes

ROG_First : Yes

OpenNAT (Game Profile) : Yes

Gaming port : Yes

AiProtection

AiProtection : AiProtection Pro

Router Security Assessment : Yes

Malicious site blocking : Yes

Two-Way IPS : Yes

Infected Device Prevention and Blocking : Yes

Parental Control

Parental Control : Yes

Parental Control Customized Internet schedule : Yes

Traffic Control

Adaptive QoS : Yes

Bandwidth Monitor : Yes

Bandwidth limiter : Yes

Maximum Bandwidth limiter rule : 32

Traditional QoS : Yes

Maximum Traditional QoS rule : 32

Traffic Monitor : Yes

Real-time traffic monitor : Yes

Wired Traffic Monitor : Yes

Wireless Traffic Monitor : Yes

Traffic Analyzer : Yes

Traffic analysis period : Daily, Weekly, Monthly

Website history : Yes

Wireless

IPv6 : Yes

MU-MIMO : Yes

Wi-Fi Encryption : Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise

UTF-8 SSID : Yes

Guest Network : Yes

Maximum Guest Network rule : 2.4GHz x3, 5GHz x3

Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal

WPS : Yes

Wi-Fi MAC address filter : Yes

Maximum MAC filters : 64

Wireless scheduler : Yes

Airtime fairness : Yes

RADIUS Server : Yes

Universal beamforming : Yes

WAN

Explicit beamforming : Yes

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP

Dual WAN : Yes

WAN Aggregation : Yes

3G/4G LTE dongle : Yes

Android tethering : Yes

Port forwarding : Yes

Maximum port forwarding rule : 64

Port triggering : Yes

Maximum port triggering rule : 32

DMZ : Yes

DDNS : Yes

NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay

LAN

DHCP Server : Yes

IGMP snooping : Yes

IPTV : Yes

LAN Link Aggregation : Yes

Manually assign IP address : Yes

Maximum manually assign IP address rule : 64

VPN

VPN Client L2PT : Yes

VPN Client OVPN : Yes

VPN Client PPTP : Yes

VPN Server IPSec : Yes

VPN Server OVPN : Yes

VPN Server PPTP : Yes

VPN Fusion : Yes

USB application

File System : HFS+, NTFS, vFAT, ext2, ext3, ext4

HDD hibernation : Yes

Safely Remove disk : Yes

AiCloud : Yes

Download master : Yes

AiDisk : Yes

Media Server : Yes

Time Machine : Yes

Samba Server : Yes

FTP Server : Yes

Shared Folder privileges : Yes

Administration

Operating mode : Accesspoint, AiMeshnode, Mediabridge, Repeater, Router

Operating system : ASUSWRT

Free OS upgrade : Yes

Firewall : Yes

Maximum Firewall keyword filter : 64

Maximum Firewall network service filter : 32

Maximum Firewall URL filter : 64

Wake on LAN (WOL) : Yes

SSH : Yes

Configuration backup and restore : Yes

Diagnosis tools : Yes

Feedback system : Yes

System log : Yes
