All stock codes associated to this product
JL258A, JL258A#ABG, 5472980

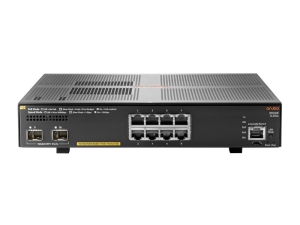

HPE JL258A Aruba 2930F 8G PoE+ 2SFP+ Switch
Overview
The Aruba 2930F Switch Series is designed for customer creating digital
workplaces optimized for mobile users. These Layer 3 access switches are easy to
deploy and manage with advanced security andnetwork
managementtools likeAruba ClearPass Policy
Manager, Aruba AirWave and cloud-basedAruba
Central. Virtual Switching Framework (VSF) provides stacking scale and
simplicity for enterprise edge, SMB and branch offices. The 2930F delivers
performance and value with support for RIP routing, Access OSPF, 10GbE uplinks,
up to 740W PoE+, robust QoS, and requires no software
licensing.
Key Features>
?>
High-Performance Access Layer Switches
- The Aruba 2930F Switch Series provides performance, security, and ease of
use for enterprise edge, SMB, and branch office networks.
- Optimized for the digital workplace with unified management tools such as
Aruba ClearPass Policy Manager, Aruba Airwave and Aruba Central. Provides
optimal configuration automatically when connected to Aruba access points for
PoE priority, VLAN configuration, and rogue AP containment.
- Stacking with Virtual Switching Framework (VSF) and convenient built-in
1GbE or 10GbE uplinks and PoE+ models deliver right-size network access
performance.
- Robust Layer 3 feature set includes Access OSPF, static and RIP routing,
ACLs, sFlow, IPv6 with no software licensing required.
Performance and Power at the Edge
- The Aruba 2930F Switch Series is designed with a powerful Aruba ProVision
ASIC, to enable the mobile campus with SDN optimizations, low latency,
increased packet buffering, and adaptive power consumption.
- Increase performance with selectable queue configurations and associated
memory buffering that meets your specific network application
requirements.
- Virtual Switching Framework (VSF) virtualizes up to eight physical
switches into one logical device for simpler, flatter, more agile
networks.
- Supports up to 740W of internal PoE+ power for wireless access points,
cameras and phones.
Security and Quality of Service You Can Rely
on
- The Aruba 2930F Switch Series includes security and quality of services
features to build a network that meets ever-changing corporate policies and
compliances while protecting your data from both inside and outside
attacks.
- Flexible authentication options include standards based security protocols
such as 802.1X, MAC and Web Authentication, to enhance security and
policy-driven application authentication.
- Powerful, multilevel-access security controls include source-port
filtering, RADIUS/TACACS+, SSL, Port Security, and MAC address
lockout.
Simplify with Integrated Wired/Wireless
Management
- The Aruba 2930F Switch Series supports Aruba ClearPass Policy Manager for
unified and consistent policy between wired and wireless users and simplifies
implementation and management of guest login, user onboarding, network access,
security, QoS, and other network policies.
- Supports Aruba Airwave Network Management software to provide common
platform for Zero Touch Provisioning management, and monitoring for wired and
wireless network devices.
- Cloud-based management supported by Aruba Central.
- RMON and sFlow provide advanced monitoring and reporting capabilities for
statistics, history, alarms and events.
- Out-of-band Ethernet management port keeps management traffic segmented
from your network data traffic.
Specifications
Product
Differentiator (long) |
Popular
Aruba 10-port Gig access switch with PoE+ with 10G uplinks. This model has
8x 10/100/1000 PoE+ ports and 2x 10G / 1G SFP+ transceiver slots for
uplink connectivity. PoE+ is supported with a power budget of 125
Watts. |
Power
Consumption Description |
155
W (maximum) |
Heat
Dissipation |
58.6
BTU/hr (61.8 kJ/hr) |
Input
Voltage |
90
- 264 VAC, rated |
External
I/O Ports |
(8)
RJ-45 autosensing 10/100/1000 PoE+ ports (2) SFP+ 1/10GbE ports
PHY-less |
Latency |
1000
Mb Latency: < 3.8 s 10 Gbps Latency: < 1.6
s |
Switching
Capacity |
56
Gbps |
Throughput |
up
to 41.7 Mpps |
Memory
and Processor |
Dual
Core ARM Cortex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB
4.5MB Ingress/7.785 Egress 4 GB eMMC |
PoE
Capability |
125
W PoE+ |
Management
Features |
Aruba
AirWave Central Network Management IMC - Intelligent Management Center
Command-line interface Web browser Configuration menu SNMP manager Telnet
RMON1 FTP Out-of-band management (serial RS-232C or micro
USB) |
Warranty
Standard Statement |
Limited
Lifetime Warranty: See www.hpe.com/networking/warrantysummary for warranty
and support information included with your product
purchase. |
Weight
(imperial) |
4.41
lb |
Weight
(metric) |
2
kg |
Product
Dimensions (imperial) |
1.73
x 10 x 10 in |
Product
Dimensions (metric) |
4.39
x 25.4 x 25.4 cm |
