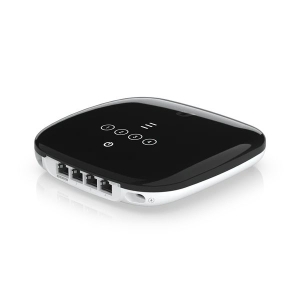

Ubiquiti UFiber WiFi6 GPON CPE
Overview
High-performance WiFi 6 GPON CPE.
The UFiber WiFi6 GPON CPE (UF WiFi6) is a point-to-multipoint WiFi 6 device
that creates high-speed GPON connections capable of reaching a 2.4 Gbps
downstream rate and 1.2 Gbps upstream rate. The UF WiFi6 has (4) GbE RJ45 LAN
ports and (1) GPON WAN port to connect a local fiber line. It also excels at
establishing reliably strong, long-distance fiber links up to 20 kilometers,
allowing you to extend your service range and build your customer
base.
Features
- 2x2, high-efficiency WiFi 6
- 2.4 GHz band (2x2 MIMO) with a 300 Mbps radio rate
- 5 GHz band (2x2 MU-MIMO and OFDMA) with a 1.2 Gbps radio
rate
- 2.4 Gbps max downstream line rate
- 1.2 Gbps max upstream line rate
- Establishes GPON links up to 20 km
- Powerful Layer 2/3 management features
- (1) GPON WAN port
- (4) GbE RJ45 LAN ports
- Powered with the included power adapter or passive PoE
- Internal WiFi 6 (802.11ax) antennas
Specifications
|
Mechanical |
|
|
Dimensions |
140.8
x 141.5 x 31.65 mm (5.54 x 5.57 x 1.25") |
|
Weight |
415
g (0.99 lb) |
|
Enclosure
material |
UV-stabilized
polycarbonate |
|
Hardware |
|
|
Processor |
Dual-core
MIPS 1004 Kc at 900 MHz |
|
Memory |
256
MB RAM |
|
Total
non-blocking line rate |
2.488
Gbps downstream |
|
1.244
Gbps upstream |
|
Networking
interfaces |
(1)
SC/APC, ITU-G.984 GPON WAN port |
|
(4)
GbE RJ45 LAN ports |
|
|
WiFi
802.11ax 5/2.4 GHz channels |
|
PoE
interface |
(1)
PoE in, 24V passive PoE |
|
Management
interface |
Ethernet
in-band |
|
PON |
|
Button |
Factory-reset |
|
Max.
power consumption |
11W |
|
Power
method |
USB-C
5VDC, 3A |
|
24V
passive PoE, 0.5A |
|
Power
supply |
5VDC,
3A power adapter, 1.5 m cord (included) |
|
Passive
PoE 2-pair (4, 5+; 7, 8-) |
|
Supported
voltage range |
10
to 30VDC passive PoE |
|
5VDC
adapter |
|
Normal
TX range of optical module |
0.5
to 5 dBm |
|
Normal
RX range of optical module |
-8
to -28 dBm |
|
Max.
WiFi TX power |
|
|
2.4
Ghz |
20
dBm |
|
5
Ghz |
20
dBm |
|
MIMO |
|
|
2.4
Ghz |
2
x 2 |
|
5
Ghz |
2
x 2 |
|
Max.
WiFi radio rate |
|
|
2.4
Ghz |
300
Mbps |
|
5
Ghz |
1.2
Gbps |
|
Antenna
Gain |
|
|
2.4
GHz |
1
dBi |
|
5
GHz |
3
dBi |
|
Operating
temperature |
-15
to 45 C (5 to 113 F) |
|
Operating
humidity |
10
to 90% noncondensing |
|
Certifications |
FCC,
IC, CE |
|
LEDs |
|
|
PON
status |
(3)
signal LEDs |
|
All-OFF:
bootup |
|
1x
orange: signal too low (< -28 db) |
|
1x
white: signal low (>= -28 db) |
|
2x
white: signal good (>= -25 db) |
|
3x
white: signal strong (>= -11 db) |
|
1x
orange + 2x white: signal too strong (>= -8
db) |
|
3x
orange: no signal |
|
LEDs
alternate between orange + white + orange and a signal strength indicator:
No authority |
|
Ethernet |
Steady
white: link up |
|
Blinking
white: activity |
|
OFF:
link down |
|
Power |
White:
ON |
|
Software |
|
|
Mode |
ONU/ONT
layer 2/3 Ethernet switch |
|
Services |
Web
server, telnet, NAT, bridging and routing, firewall features, and
application passthrough features |
|
Utilities |
Dashboard,
monitoring, alarms, and logs |
|
Other |
Remote
reset, remote reboot, remote firmware upgrade, VLAN
support |
|
Security |
GEM
Port Encryption |
|
Ubiquiti
specific features |
UBNT
Discovery and UISP Mobile app |
|
WiFi
standards |
802.11
b/g |
|
WiFi
4/WiFi 5/WiFi 6 |
|
Wireless
security |
WEP,
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3,
TKIP/AES) |
|
Minimum
software requirements |
Any
modern web browser (Google Chrome recommended) |
|
Fiber |
|
|
Operating
wavelength |
1310
nm TX/1490 nm RX |
|
Optical
interface downstream nominal bit rate |
2488.32
Mbit/s |
|
Optical
interface upstream nominal bit rate |
1244.16
Mbit/s |
|
Physical
reach |
20
km |
|
Supported
Data Rates |
|
|
802.11b |
1,
2, 5.5, 11 Mbps |
|
802.11g |
6,
9, 12, 18, 24, 36, 48, 54 Mbps |
|
802.11n
(WiFi 4) |
6.5
Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
|
802.11ac
(WiFi 5) |
6.5
Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT
20/40/80) |
|
802.11ax
(WiFi 6) |
8.6
Mbps to 1.2 Gbps (MCS0 - MCS11 NSS1/2, HE
20/40/80) |
