HARDWARE
FEATURES |
|
Interface |
4x
100/1000/2500/5000/10000 Mbps RJ45 Ports |
|
2x
10G SFP+ Slots |
|
1x
RJ45 Console Port |
|
1x
Micro-USB Console Port |
|
Fan
Quantity |
2 |
|
Power
Supply |
100-240
V AC~50/60 Hz |
|
PoE
Ports (RJ45) |
Standard:
802.3bt/at/af compliant |
|
PoE+
Ports: 4 Ports, up to 60 W per port |
|
Power
Budget: 200 W |
|
Dimensions
( W x D x H ) |
11.6
x 7.1 x 1.7 in (294x 180 x 44 mm) |
|
Mounting |
Rack
Mountable |
|
Desktop |
|
Max
Power Consumption |
27.29
W (110V/60Hz) (no PD connected) |
|
244.90
W (110V/60Hz) (with 200 W PD connected) |
|
Max
Heat Dissipation |
93.12
BTU/h (110 V/60 Hz) (no PD connected) |
|
835.67
BTU/h (110 V/60 Hz) (with 200 W PD connected) |
|
PERFORMANCE |
|
Switching
Capacity |
120
Gbps |
|
Packet
Forwarding Rate |
89.28
Mpps |
|
MAC
Address Table |
32
K |
|
Jumbo
Frame |
9
KB |
|
SOFTWARE
FEATURES |
|
Quality
of Service |
8
priority queues |
|
802.1p
CoS/DSCP priority |
|
Queue
scheduling |
|
-
SP (Strict Priority) |
|
-
WRR (Weighted Round Robin) |
|
-
SP+WRR |
|
Bandwidth
Control |
|
-
Port/Flow based Rating Limiting |
|
Smoother
Performance |
|
Action
for Flows |
|
-
Mirror (to supported interface) |
|
-
Redirect (to supported interface) |
|
-
Rate Limit |
|
-
QoS Remark |
|
L2
and L2+ Features |
Link
Aggregation |
|
-
static link aggregation |
|
-
802.3ad LACP |
|
-
Up to 8 aggregation groups, containing 8 ports per
group |
|
Spanning
Tree Protocol |
|
-
802.1d STP |
|
-
802.1w RSTP |
|
-
802.1s MSTP |
|
-
STP Security: TC Protect, BPDU Filter, Root
Protect |
|
Loopback
Detection |
|
-
Port based |
|
-
VLAN based |
|
Flow
Control |
|
-
802.3x Flow Control |
|
-
HOL Blocking Prevention |
|
Mirroring |
|
-
Port Mirroring |
|
-
CPU Mirroring |
|
-
One-to-One |
|
-
Many-to-One |
|
-
Tx/Rx/Both |
|
L2
Multicast |
IGMP
Snooping |
|
-
IGMP v1/v2/v3 Snooping |
|
-
Fast Leave |
|
-
IGMP Snooping Querier |
|
-
IGMP Authentication |
|
IGMP
Authentication |
|
MLD
Snooping |
|
-
MLD v1/v2 Snooping |
|
-
Fast Leave |
|
-
MLD Snooping Querier |
|
-
Static Group Config |
|
-
Limited IP Multicast |
|
MVR |
|
Multicast
Filtering: 256 profiles and 16 entries per
profile |
|
VLAN |
VLAN
Group |
|
-
Max 4K VLAN Groups |
|
802.1Q
Tagged VLAN |
|
MAC
VLAN: 10 Entries |
|
Protocol
VLAN: Protocol Template 16, Protocol VLAN 16 |
|
Private
VLAN |
|
GVRP |
|
VLAN
VPN (QinQ) |
|
-
Port-Based QinQ |
|
-
Selective QinQ |
|
Voice
VLAN |
|
Access
Control List |
Time-based
ACL |
|
MAC
ACL |
|
-
Source MAC |
|
-
Destination MAC |
|
-
VLAN ID |
|
-
User Priority |
|
-
Ether Type |
|
IP
ACL |
|
-Source
IP |
|
-
Destination IP |
|
-
Fragment |
|
-
IP Protocol |
|
-
TCP Flag |
|
-
TCP/UDP Port |
|
-
DSCP/IP TOS |
|
-
User Priority |
|
Combined
ACL |
|
Packet
Content ACL |
|
IPv6
ACL |
|
Policy |
|
-
Mirroring |
|
-
Redirect |
|
-
Rate Limit |
|
-
QoS Remark |
|
ACL
apply to Port/VLAN |
|
Security |
IP-MAC-Port
Binding |
|
-
512 Entries |
|
-
DHCP Snooping |
|
-
ARP Inspection |
|
-
IPv4 Source Guard: 100 Entries |
|
IPv6-MAC-Port
Binding |
|
-
512 Entries |
|
-
DHCPv6 Snooping |
|
-
ND Detection |
|
-
IPv6 Source Guard: 100 Entries |
|
DoS
Defend |
|
Static/Dynamic
Port Security |
|
-
Up to 64 MAC addresses per port |
|
Broadcast/Multicast/Unicast
Storm Control |
|
-
kbps/ratio control mode |
|
802.1X |
|
-
Port base authentication |
|
-
Mac base authentication |
|
-
VLAN Assignment |
|
-
MAB |
|
-
Guest VLAN |
|
-
Support Radius authentication
andaccountability |
|
AAA
(including TACACS+) |
|
Port
Isolation |
|
Secure
web management through HTTPS with SSLv3/TLS
1.2 |
|
Secure
Command Line Interface (CLI) management with
SSHv1/SSHv2 |
|
IP/Port/MAC
based access control |
|
IPv6 |
IPv6
Dual IPv4/IPv6 |
|
Multicast
Listener Discovery (MLD) Snooping |
|
IPv6
ACL |
|
IPv6
Interface |
|
Static
IPv6 Routing |
|
IPv6
neighbor discovery (ND) |
|
Path
maximum transmission unit (MTU) discovery |
|
Internet
Control Message Protocol (ICMP) version 6 |
|
TCPv6/UDPv6 |
|
IPv6
applications |
|
-
DHCPv6 Client |
|
-
Ping6 |
|
-
Tracert6 |
|
-
Telnet (v6) |
|
-
IPv6 SNMP |
|
-
IPv6 SSH |
|
-
IPv6 SSL |
|
-
Http/Https |
|
-
IPv6 TFTP |
|
L3
Features |
16
IPv4/IPv6 Interfaces |
|
Static
Routing |
|
-
48 static routes |
|
Static
ARP |
|
-
128 Static Entries |
|
Proxy
ARP |
|
Gratuitous
ARP |
|
DHCP
Server |
|
DHCP
Relay |
|
-
DHCP Interface Relay |
|
-
DHCP VLAN Relay |
|
DHCP
L2 Relay |
|
Management |
Web-based
GUI |
|
Command
Line Interface (CLI) through the console port,
telnet |
|
SNMP
v1/v2c/v3 |
|
-
Trap/Inform |
|
-
RMON (1,2,3,9 groups) |
|
SDM
Template |
|
DHCP/BOOTP
Client |
|
802.1ab
LLDP/LLDP-MED |
|
DHCP
AutoInstall |
|
Dual
Image, Dual Configuration |
|
CPU
Monitoring |
|
Cable
Diagnostics |
|
EEE |
|
Password
Recovery |
|
SNTP |
|
System
Log |
|
Advanced
Features |
Support
Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based
Controller |
|
Automatic
Device Discovery |
|
Batch
Configuration |
|
Batch
Firmware Upgrading |
|
Intelligent
Network Monitoring |
|
Abnormal
Event Warnings |
|
Unified
Configuration |
|
Reboot
Schedule |
|
ZTP
(Zero-Touch Provisioning)* |
|
MIBs |
MIB
II (RFC1213) |
|
Interface
MIB (RFC2233) |
|
Ethernet
Interface MIB (RFC1643) |
|
Bridge
MIB (RFC1493) |
|
P/Q-Bridge
MIB (RFC2674) |
|
RMON
MIB (RFC2819) |
|
RMON2
MIB (RFC2021) |
|
Radius
Accounting Client MIB (RFC2620) |
|
Radius
Authentication Client MIB (RFC2618) |
|
Remote
Ping, Traceroute MIB (RFC2925) |
|
Support
TP-Link private MIB |
|
MANAGEMENT |
|
Omada
App |
Yes.
Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada
Software Controller. |
|
Centralized
Management |
Omada
Cloud-Based Controller |
|
Omada
Hardware Controller (OC300) |
|
Omada
Hardware Controller (OC200) |
|
Omada
Software Controller |
|
Cloud
Access |
Yes.
Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada
Software Controller. |
|
Zero-Touch
Provisioning |
Yes.
Requiring the use of Omada Cloud-Based
Controller. |
|
Management
Features |
Web-based
GUI |
|
Command
Line Interface (CLI) through the console port,
telnet |
|
SNMP
v1/v2c/v3 |
|
-
Trap/Inform |
|
-
RMON (1,2,3,9 groups) |
|
SDM
Template |
|
DHCP/BOOTP
Client |
|
802.1ab
LLDP/LLDP-MED |
|
DHCP
AutoInstall |
|
Dual
Image, Dual Configuration |
|
CPU
Monitoring |
|
Cable
Diagnostics |
|
EEE |
|
Password
Recovery |
|
SNTP |
|
System
Log |
|
OTHERS |
|
Certification |
CE,
FCC, RoHS |
|
Package
Contents |

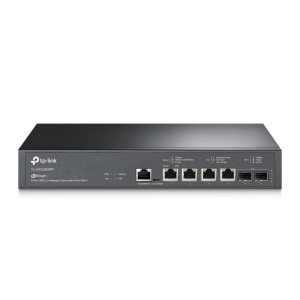

TL-SX3206HPP
Switch |
|
Power
Cord |
|
Quick
Installation Guide |
|
Rackmount
Kit |
|
Rubber
Feet |
|
System
Requirements |
Microsoft
Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare,
UNIX or Linux. |
|
Environment |
Operating
Temperature: 050 (32122
); |
|
Storage
Temperature: -4070 (-40158
) |
|
Operating
Humidity: 1090% RH non-condensing |
|
Storage
Humidity: 590% RH
non-condensing |
