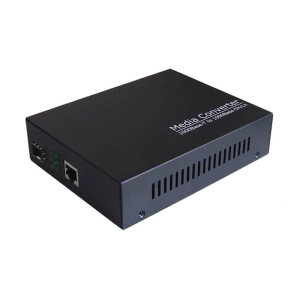

Serveredge 10/100/1000Base-TX to 1000Base-FX Multimode LC Fibre Media
Converter (550m)
Overview
The Serveredge Gigabit Media Converter SED-GMSLC55020 allows you to
transparently connect your Gigabit Copper cabling system (10 Base-T, 100 Base-TX
or 1000 Base-T) with the fibre optic cabling system(1 Base-FX) . This media
converter provides a long distance connection between legacy 10 BaseT and 100
BaseTX networks and the 1000 Base Gigabit Ethernet networks.The SED-1 MLC(550m)
incorporates advances features such as Auto-Negotiation, Auto-MDIX,Link Pass-
Through, Fibre Fault Alert & loop back. This Unit can be used as a
standalone unit or as a slide in module in a 14 slot Media Converter
Chassis.
SPECIFICATION
PERFORMANCE
- Latency: < 4.2 s (LIFO)
- Throughput @ 100Base: 148,810 pps (64-byte packets)
- Throughput @ 1000Base: 1,488,110 pps (64-byte packets)
FIBER INTERFACE, MULTIMODE MODELS
- Type: Laser Diode
- Wavelength: 850 nm nominal
- Maximum Output Power: - 4.0 dBm
- Minimum Output Power: - 9.5 dBm
- Sensitivity: -13.5 dBm
- Maximum Input Power: - 13.5 dBm
- Link Power Budget: 4.0 dB
PHYSICAL CHARACTERISTICS
- Case dimensions: 120mm x 86mm x 26.8mm
- Weight: 400 grams
ENVIRONMENTAL CHARACTERISTICS
- Operating Temperature: 0C ~ 45C)
- Storage Temperature: -10C ~ 65C)
- Relative Humidity: 5% ~ 90%, non-condensing
POWER
- External power adapter: 5V ~ 2A
- Power Consumption: 5 Watts Maximum
FEATURE
- Built - In Twisted - Pair Port 10/100/1000 Switch
- Auto- Negotiation RJ45 Connector with Auto-MDIX
- LC/UPC Connector
- LEDs for Functions, Links & Activity
- Link Fault Signaling For Use with Managed Switches
- 1024 Mac Address Capacity
- Store and Forward Architecture
- Singlemode Spans up to 55 Km
- Wall or Chassis Mountable
- IEEE 8 2.3 1 BaseT and IEEE 8 2.3u 1 BaseTX & IEEE 8 2.3ab 1 BaseT
Compliant
- Compliant to FCC part 15 Class A,CE Mark, CTick
- 2 Year Manufacturers Warranty
