VE1843-AT-U | ATEN True 4K HDMI / USB HDBaseT 3.0 Transceiver

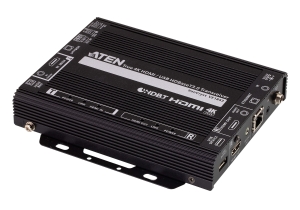

Aten VE1843 True 4K HDMI / USB HDBaseT 3.0 Transceiver

Overview

Extends uncompressed True 4K HDMI signals up to 100 m over a single Cat 6a cable (HDBaseT3 Certified Cat 6a cable) with zero latency

Compliant with HDBaseT 3.0 standards transmits high-quality video, full range IR, bi-directional RS-232, Gigabit, Ethernet, independent stereo audio and USB 2.0 signals channel bypass

Superior video quality up to 4096 x 2160 @ 60 Hz (4:4:4); HDR supported

Supports HDMI audio embedding / de-embedding functions

As ATEN s first video transceiver, the VE1843 features the latest HDBaseT 3.0 technology, allowing users to easily configure the unit to be a transmitter or receiver depending on the AV solution they need, while enabling uncompressed True 4K HDMI transmission up to 100m/328ft with zero latency via just one Cat 6A U/FTP cable. With its user-oriented hardware design and enhanced durability, this new model is purpose-built for spaces that require long-distance, yet high-quality, signal transmission with easy installation and non-stop operation, such as conference rooms, auditoriums, banquet halls, and museums.

* Cat 6A U/FTP is the recommended setting. The skewless nature and inter-pair shielding of FTP provides the better near-end crosstalk (NEXT, source end) and far-end crosstalk (FEXT, receiver end) parameters required to achieve the maximum performance and distance.

• Extends uncompressed True 4K HDMI signals up to 100 m over a single Cat 6a cable (HDBaseT3 Certified Cat 6a cable) with zero latency
• Flexible for deployment can be configured as a transmitter or receiver depending on the AV solution
• Compliant with HDBaseT 3.0 standards transmits high-quality video, full range IR, bi-directional RS-232, Gigabit Ethernet, independent stereo audio and USB 2.0 signals channel bypass
• HDMI (3D, Deep Color, 4K/60Hz); HDCP 2.3 compliant
• Superior video quality up to 4096 x 2160 @ 60 Hz (4:4:4); HDR supported
• Supports HDMI audio embedding / de-embedding functions
• Supports HDMI local output
• Compliant with the USB 2.0 standard for a wide range of USB peripherals compatibility
• LED indication of HDBaseT and HDMI signal status for easier recognition
• Fanless fin heat sink enclosure elevates durability and reliability by preventing overheating, fan malfunctions, and noises
• Supports extremely high refresh rates up to 240 Hz for the connected display
• Firmware upgradable
• Built-in 8KV / 15KV ESD protection
• Plug-and-play
• Rack-mountable
