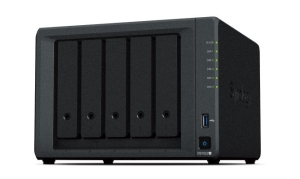

Synology DiskStation DS1522+
Overview
Flexible data management for homes and small business
The 5-bay Synology DiskStation DS1522+ is easy to scale and expand as your
needs change, with optional support for up to 15 drives, 10GbE networking, and
NVMe SSD caching. Powered by Synology DiskStation Manager (DSM), it offers a
flexible all-in-one solution for data sharing, synchronization, backup, and
surveillance.
Throughput
Over 736/796 MB/s sequential read/write
Memory
8 GB DDR4 ECC (max. 32 GB)
Connectivity
Four built-in 1GbE ports with easy 10GbE option
Scalability
Up to 15 drive bays with 2 DX517 expansion units
Specifications
|
CPU |
CPU
Model |
AMD
Ryzen R1600 |
|
CPU
Quantity |
1 |
|
CPU
Architecture |
64-bit |
|
CPU
Frequency |
2-core
2.6 (base) / 3.1 (turbo) GHz |
|
Hardware
Encryption Engine (AES-NI) |
Yes |
|
Memory |
System
Memory |
8
GB DDR4 ECC SODIMM |
|
Memory
Module Pre-installed |
8
GB (8 GB x 1) |
|
Total
Memory Slots |
2 |
|
Maximum
Memory Capacity |
32
GB (16 GB x 2) |
|
Notes |
Synology
reserves the right to replace memory modules with the same or higher
frequency based on supplier's product life cycle status. Rest assured that
the compatibility and stability have been strictly verified with the same
benchmark to ensure identical performance. |
|
Please
select Synology memory modules for optimum compatibility and reliability.
Synology will not provide complete product warranty or technical support
if non-Synology memory modules are used for memory
expansion. |
|
For
more information about the recommended memory configurations, please check
the Hardware Installation Guide of your Synology
product. |
|
Storage |
Drive
Bays |
5 |
|
Maximum
Drive Bays with Expansion Unit |
15
(DX517 x 2) |
|
M.2
Drive Slots |
2
(NVMe) |
|
Compatible
Drive Type* (See all supported drives) |
3.5"
SATA HDD |
|
2.5"
SATA SSD |
|
M.2
2280 NVMe SSD |
|
Hot
Swappable Drive |
Yes |
|
Notes |
"Compatible
drive type" indicates drives that have been tested to be compatible with
Synology products. This term does not indicate the maximum connection
speed of each drive bay. |
|
External
Ports |
RJ-45
1GbE LAN Port* |
4
(with Link Aggregation / Failover support) |
|
USB
3.2 Gen 1 Port* |
2 |
|
eSATA
Port |
2 |
|
Notes |
This
device's 1GbE LAN ports have a maximum transmission unit (MTU) size of
1,500 bytes. |
|
The
USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers
Forum (USB-IF) in 2019. |
|
PCIe |
PCIe
Expansion |
1
x Gen3 x2 network upgrade slot |
|
File
System |
Internal
Drives |
Btrfs |
|
EXT4 |
|
External
Drives |
Btrfs |
|
EXT4 |
|
EXT3 |
|
FAT |
|
NTFS |
|
HFS+ |
|
exFAT |
|
Appearance |
Size
(Height x Width x Depth) |
166
mm x 230 mm x 223 mm |
|
Weight |
2.7
kg |
|
Others |
System
Fan |
92
mm x 92 mm x 2 pcs |
|
Fan
Speed Mode |
Full-Speed
Mode |
|
Cool
Mode |
|
Quiet
Mode |
|
Brightness
Adjustable Front LED Indicators |
Yes |
|
Power
Recovery |
Yes |
|
Noise
Level* |
22.90
dB(A) |
|
Scheduled
Power On / Off |
Yes |
|
Wake
on LAN / WAN |
Yes |
|
Power
Supply Unit / Adapter |
120
W |
|
AC
Input Power Voltage |
100V
to 240V AC |
|
Power
Frequency |
50/60
Hz, Single Phase |
|
Power
Consumption* |
52.06
W (Access) |
|
16.71
W (HDD Hibernation) |
|
British
Thermal Unit |
177.64
BTU/hr (Access) |
|
57.02
BTU/hr (HDD Hibernation) |
|
Notes |
For
more information on how power consumption is measured, refer to this
article. |
|
Noise
testing was conducted with the Synology system fully installed with
Synology SATA HDDs and in an idle state. Two GRAS 40AE microphones are
placed at a 1 m distance from the front and rear of the device. Background
noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75C; Humidity:
58.2-61.8% |
|
Temperature |
Operating
Temperature |
0C
to 40C (32F to 104F) |
|
Storage
Temperature |
-20C
to 60C (-5F to 140F) |
|
Relative
Humidity |
5%
to 95% RH |
|
Certification |
FCC |
|
CE |
|
BSMI |
|
VCCI |
|
RCM |
|
UKCA |
|
EAC |
|
CCC |
|
KC |
|
Warranty |
3-year
hardware warranty, extendable to 5 years
with EW201 or Extended Warranty
Plus |
|
Notes |
Availability
varies by region. Before purchasing, please visit the official web pages
of EW201/202 and Extended Warranty Plus for a list of
eligible regions. |
|
The
warranty period starts from the purchase date as stated on your purchase
receipt. (Learn more) |
|
Environment |
RoHS
Compliant |
|
Packaging
Content |
Main
Unit X 1 |
|
Accessory
Pack X 1 |
|
AC
Power Adapter X 1 |
|
AC
Power Cord X 1 |
|
RJ-45
LAN Cable X 2 |
|
Quick
Installation Guide X 1 |
|
Optional
Accessories |
DDR4
ECC SODIMM: D4ES02-8G/D4ES01-16G |
|
Expansion
Units: DX517 |
|
3.5"
SATA HDD: HAT5300 |
|
2.5"
SATA SSD: SAT5210 |
|
M.2
2280 NVMe SSD: SNV3410 |
|
10GbE
Network Upgrade Module: E10G22-T1-Mini |
|
VisualStation: VS360HD |
|
Surveillance
Device License Pack |
|
Notes |
Certain
items may not be available in your location. Please contact your local
distributors for more information. |
|
All
memory modules will operate at the maximum frequency specified by the CPU
manufacturer. |
