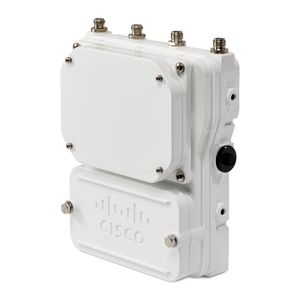

INDUSTRIAL WIRELESS AP 6300 AC INPUT HAZLOC A DOMAIN
CiscoCatalystIW6300 access points deliver secure, scalable, and flexible wireless connectivity to the most hazardous industrial environments, reliably delivering actionable data to always-on businesses.
Product overview
Designed for the most hazardous industrial locations, Cisco Catalyst IW6300 Heavy Duty Access Points deliver wireless connectivity, IoT control, and robust data collection to dangerous environments. Mines, refineries, and factory floors are undergoing a digital transformation, with Wi-Fi availability extracting live insights from equipment and workers alike. With 802.11ac Wave 2 connectivity, dual Power over Ethernet Plus (PoE+) out for IoT sensors or peripherals, multiple power-in sources, and a variety of uplink options, the IW6300 is a flexible wireless solution today's dynamic industry landscape requires. The IW6300 carries an IP67 rating and Class I, Division/Zone 2 certification, as well as a temperature rating of -40 to +75 degrees Celsius, making it an ideal mesh network component for heavy industry use. Additional customization beyond antenna and mounting options include WirelessHART, ISA100.11a, GPS, Bluetooth Low-Energy, and Zigbee modules, as well as customer or partner-built modules for specific use cases.
Physical Characteristics
| Weight (Approximate) | 6.03 kg |
| Height | 142.2 mm |
| Width | 246.4 mm |
| Depth | 279.4 mm |
Technical Information
| Wireless Transmission Speed | 1.14 Gbit/s |
| Frequency Band | 5 GHz |
| 2.40 GHz |
| Wireless LAN Standard | IEEE 802.11ac |
| Encryption Standard | TKIP |
| AES |
| WPA |
| WPA3 |
| Data Encryption | Yes |
| MIMO Technology | Yes |
| Beamforming Technology | Yes |
Interfaces/Ports
| Ethernet Technology | Gigabit Ethernet |
| USB | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Management Port | Yes |
| PoE (RJ-45) Port | Yes |
| PoE PD Port | Yes |
General Information
| Product Type | Wireless Access Point |
| Manufacturer Website Address | https://www.cisco.com/c/en_au |
| Manufacturer | Cisco Systems, Inc |
| Product Model | IW-6300H |
| Product Name | Catalyst IW6300 AC Heavy Duty Access Point |
| Product Line | Catalyst |
| Product Series | IW6300 |
| Brand Name | Cisco |
