All stock codes associated to this product
PDU41404, CP89166A, 3979796, 4712856277241

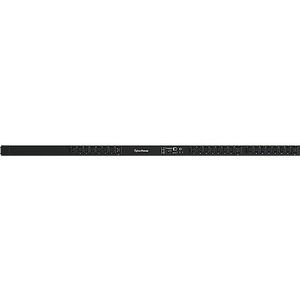

CyberPower PDU41404 PDU - Switched - IEC 60309 16A - 3 x IEC 60320 C19, 21 x IEC 60320 C13 - 16 A - 230 V AC Input - 0U Network (RJ-45) - Vertical - Rack-mountable
CyberPower PDU41404Switched series power distribution unit provides output from a UPS unit, generator, or utility power to multiple connected devices in datacenter environments. The unit supports remote individual outlet control over the network, allowing administrators to turn on/off connected devices from any location. Administrators can further determine the power sequence used to turn individual outlets on or off.
The power management web interface offers real-time remote monitoring of the PDU vitals of the outlets of networked clients. Event logging via a web browser or network connection allows users to review a history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The featured RJ45 port enables the connection of the optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in an IT center.
The product is also certified to be interoperable and compatible with Cisco Compatible network environments, which helps to achieve the best energy performance possible in the datacenter scenario.
Interfaces/Ports
Management
Management | Protocols:
- IPv4/v6
- SNMPv1/v3
- HTTP/HTTPs
- TCP/IP
- UDP
- DHCP
- NTP
- DNS
- SMTP
- SSH
- SSL
- TLS
- Telnet
- FTP
- and Syslog
- RADIUS
- LDAP
- LDAPS
|
Miscellaneous
Environmentally Friendly | Yes |
Power Description
Input Voltage | 230 V AC |
Input Current | 16 A |
Input Voltage Range | 200 V AC - 240 V AC |
Technical Information
Plug/Connector Type | IEC 60309 16A |
Phase | Single Phase |
Receptacle Type | IEC 60320 C13 |
IEC 60320 C19 |
PDU Type | Switched |
Receptacle Detail | 3 x IEC 60320 C19 |
21 x IEC 60320 C13 |
Plug/Connector Detail | 1 x IEC 60309 16A |
General Information
Product Type | PDU |
Manufacturer Website Address | https://www.cyberpower.com/au |
Manufacturer | CyberPower Systems, Inc |
Product Model | PDU41404 |
Product Name | PDU41404 24-Outlet PDU |
Brand Name | CyberPower |
Physical Characteristics
Weight (Approximate) | 6.99 kg |
Mount Type | Rack-mountable |
Rack Height | 0U |
Height | 1663.7 mm |
Width | 55.9 mm |
Depth | 48.3 mm |
Mounting Orientation | Vertical |
