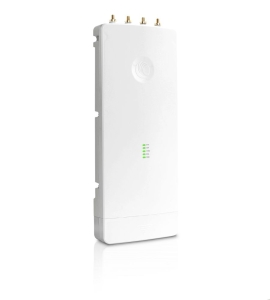

Cambium ePMP 3000
Overview
Cambium Networks ePMP product line has set the standard for high performance,
scalability and reliability in harsh interference environments all at a
compelling price. The ePMP 3000 is the third generation access point (AP) that
carries on the interference tolerance mechanisms from ePMP 2000 but adds the
power of Multi-User MIMO (MU-MIMO). The ePMP 3000 is a 44 MU-MIMO access point
that can double the throughput at the sector level with the same channel
bandwidth by serving two subscribers at the same time.
FREQUENCY REUSE
Supports GPS synchronization and SM Transmit power control to allow for
frequency re-use.
UNMATCHED PERFORMANCE AND SCALABILITY
With the efficient Cambium Networks MAC protocol and advanced air-fairness
scheduler up to 120 simultaneously active subscriber modules can be served
without performance degradation.
INDUSTRY-LEADING INTERFERENCE TOLERANCE
The intelligent filtering capability on the receive side makes ePMP 3000
immune to the effects of strong off-channel interferers and on the transmit side
serves to reduce off-channel noise for better radio co-location.
INDUSTRY-LEADING SPECTRAL EFFICIENCY
MU-MIMO in the downlink doubles the sector capacity by serving two MIMO users
at the same time.
Specifications
|
SPECTRUM |
|
|
Channel
Spacing |
Configurable
on 5 MHz increments |
|
Frequency
Range |
49105980
MHz (exact frequencies as allowed by local
regulations) |
|
Channel
Width |
10
| 20 | 40 | 80 MHz (NOTE: 10 MHz bandwidth is supported only with Force
300-19R SM. Also note that 11n SM's can connect and operate in
10MHz) |
|
INTERFACE |
|
|
MAC
(Media Access Control) Layer |
Cambium
Proprietary |
|
Physical
Layer |
4x4
MUMIMO/OFDM |
|
Ethernet
Interfaced |
100/1000BaseT,
rate auto negotiated, 802.3at compliant & Aux SFP
port |
|
Powering
Methods Supported |
56
V PoE (included), standard 802.3at PoE Supply, or CMM5 with 56 V and 5 pin
to 7 pin cross over cable adapter |
|
Protocols
Used |
IPv4/IPV6
, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP
Snooping |
|
Network
Management |
HTTPs,
SNMPv2c, SSH |
|
VLAN |
802.1Q
with 802.1p priority |
|
PERFORMANCE |
|
|
Subscribers
per Sector |
Up
to 120 |
|
ARQ |
Yes |
|
Nominal
Receive Sensitivity (w/FEC) @20 MHz Channel |
MCS
0 , -92 MCS 8 supported by Wi-Fi -68 |
|
Nominal
Receive Sensitivity (w/FEC) @40 MHz Channel |
MCS0,
-89 MCS9, -64 |
|
Nominal
Receive Sensitivity (w/FEC) @80 MHz Channel |
MCS0,
-86, MCS9 - 61 |
|
Modulation
Levels (Adaptive) |
MCS0
(BPSK) to MCS 9 (256 QAM 5/6) |
|
GPS
Synchronization |
Yes,
via Internal GPS or Cambium Sync (Internal GPS receiver also contains a
patch antenna and can be used without the external puck
antenna) |
|
Quality
of Service |
Three
level priority (Voice, High, Low) with packet classification by DSCP, COS,
VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority,
MIR/CIR support* |
|
DSO* |
Dynamic
Spectrum Optimization. Ability to change channels based on interference
detection on current channel |
|
Fast
DFS* |
Change
to alternate radar free channel with background availability
check |
