All stock codes associated to this product
PDU41405, CP89167, 4302422, 4712856277234

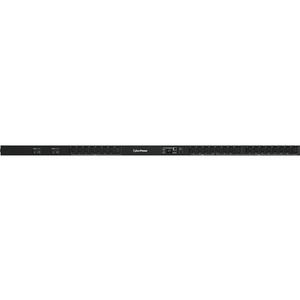

CyberPower PDU41405 PDU - Switched - IEC 60309 32A - 21 x IEC 60320 C13, 3 x IEC 60320 C19 - 32 A - 230 V AC Input - 230 V AC Output - 0U Network (RJ-45) - Vertical - Rack-mountable
CyberPower PDU41405
Switched series power distribution unit provides output from a UPS unit, generator, or utility power to multiple connected devices in datacenter environments. The unit supports remote individual outlet control over the network, allowing administrators to turn on/off connected devices from any location. Administrators can further determine the power sequence used to turn individual outlets on or off.
The power management web interface offers real-time remote monitoring of the PDU vitals of the outlets of networked clients. Event logging via a web browser or network connection allows users to review a history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The featured RJ45 port enables the connection of the optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in an IT center.
The product is also certified to be interoperable and compatible with Cisco Compatible network environments, which helps to achieve the best energy performance possible in the datacenter scenario.
features
- Real-Time Local/Remote Monitoring and Switching
- Controllable Receptacles with Power Sequencing
- User Configurable Color LCD
- Digital Real-time Load Display
- Firmware Upgrade via USB
- PowerPanel Management Software
Interfaces/Ports
Warranty
Management
| Management | - CyberPower PowerPanel Business Edition Software
Protocol:
- IPv4
- IPv6
- SNMPv1
- SNMPv3
- HTTP
- HTTPs
- TCP/IP
- UDP
- DHCP
- NTP
- DNS
- SMTP
- SSH
- SSL
- TLS
- Telnet
- FTP
- Syslog
Authentication:
- RADIUS
- LDAP
- LDAPS
- Windows AD
|
| Remote Outlet Switching | Yes |
Miscellaneous
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
Power Description
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Input Current | 32 A |
| Input Voltage Range | 200 V AC - 240 V AC |
| Output Voltage Range | 200 V AC - 240 V AC |
General Information
| Product Type | PDU |
| Manufacturer Part Number | PDU41405 |
| Manufacturer Website Address | https://www.cyberpower.com/au |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PDU41405 |
| Product Name | PDU41405 24-Outlet PDU |
| Brand Name | CyberPower |
Physical Characteristics
| Weight (Approximate) | 7.98 kg |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 1666.2 mm |
| Width | 55.9 mm |
| Depth | 48.3 mm |
| Mounting Orientation | Vertical |
Technical Information
| Protection Type | Overload Protection |
| Overcurrent Protection |
| Plug/Connector Type | IEC 60309 32A |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 |
| PDU Type | Switched |
| Receptacle Detail | 21 x IEC 60320 C13 |
| 3 x IEC 60320 C19 |
| Plug/Connector Detail | 1 x IEC 60309 32A |
Networking
