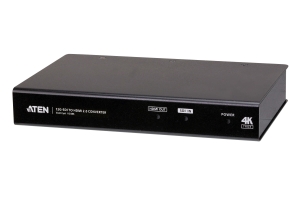

Aten VC486 12G-SDI to HDMI Converter
Overview
The VC486 is a 12G-SDI to HDMI 2.0 Converter that converts HD/3G/6G/12G-SDI
input signals to an HDMI output in real time. It supports various transmission
distances depending on different SDI formats, including 45 m (12G-SDI), 60 m
(6G-SDI), 90 m(3G-SDI), and 150 m (HD-SDI), offering the flexibility for
professional video projects. In addition, the converter works with ATEN VC486
Configuration Software, allowing users to configure the device's input, output,
and audio settings with ease. The VC486 is a perfect choice for converting SDI
signal to HDMI for applications such as broadcasting, medical imaging and
industrial inspection.
- Converts HD/3G/6G/12G-SDI input signals to an HDMI output in real
time
- SDI signal re-clocked for high signal quality
- Supports SDI standard SMPTE-292/424/425-3/2081/2082
- Supports an SDI distance of up to 45 m (12G-SDI), 60 m (6G-SDI), 90 m
(3G-SDI) and 150 m (HD-SDI)
- Supported SDI formats:
- HD-SDI (SMPTE 292M, 296M, up to 1.485 Gbps)
- 3G-SDI (SMPTE 424M, 425M level A and B, up to 2.97 Gbps)
- 6G-SDI (SMPTE 2081-1, SMPTE 2081-10, up to 6 Gbps)
- 12G-SDI (SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10, up
to 12 Gbps)
- Supports analog stereo audio output with RCA (R/L)
connector
- Automatic detection of input video signals
- Analog Audio channel selection with a 8-step rotary switch
- Locking power connector
Specifications
|
Switches |
|
Audio
EDID Selection |
1
x rotary switch (8-steps) |
|
Control |
|
USB |
1
x Micro USB (FW upgrade) |
|
Video
Input |
|
Interfaces |
1
x SDI (BNC connector, inter-locked socket) |
|
Impedance |
75
|
|
Video
Output |
|
Interfaces |
1
x HDMI (Type-A) Female |
|
1
x SDI (BNC connector, inter-locked socket) |
|
Impedance |
HDMI
100 / SDI 75 |
|
Video |
|
Max.
Data Rate |
12 Gbps |
|
Supported
Resolutions |
720p50,
720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,
1080p50, 1080p59.94, 1080p60 , 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50,
1080i59.94, 1080i60 |
|
2K
DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI
25PsF |
|
2160p23.98,
2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94,
2160p60 |
|
4K
DCI 23.98p, 4K DCI 24p, 4K DCI 25p |
|
Max.
Distance |
[12G-SDI]
up to 45m |
|
[6G-SDI]
up to 60m |
|
[3G-SDI]
up to 90m |
|
[HD-SDI]
up to 150m |
|
HDMI
up to 3m (3840 X 2160@60Hz) |
|
Audio |
|
Output |
1
x HDMI (Type-A) Female |
|
2
x RCA connector Female (R/L, analog audio) |
|
Format |
Compliance
with HDMI 2.0 with 2 CH Audio |
|
SDI
Formats |
HD-SDI
(SMPTE 292M, 296M, up to 1.485 Gbps) |
|
3G-SDI
(SMPTE 424M, 425M level A, up to 2.97
Gbps) |
|
6G-SDI
(SMPTE 2081-1, SMPTE 2081-10, up to 6 Gbps) |
|
12G-SDI
(SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10, up to
12Gbps) |
|
Connectors |
|
Power |
1
x DC 5V 3A, Lockable |
|
Power
Consumption |
DC5V:5.69W:27BTU |
|
Environmental |
|
Operating
Temperature |
0
- 40 C |
|
Storage
Temperature |
-20
- 60 C |
|
Humidity |
20
- 90% RH, Non-Condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
0.65
kg ( 1.43 lb ) |
|
Dimensions
(L x W x H) |
18.20
x 12.96 x 2.87 cm |
|
(7.17
x 5.1 x 1.13 in.) |
|
Carton
Lot |
5
pcs |
|
Note |
For
some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
