All stock codes associated to this product
AR3157, 1000402, 731304236368

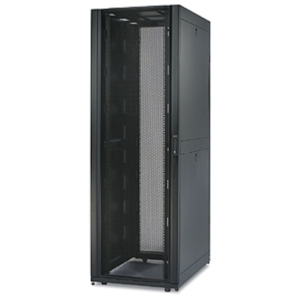

APC NetShelter SX, Server Rack Enclosure, 48U, Black, 2258H x 750W x
1070D mm
Overview
An industry standard server rack ready for medium to high density
environments with height designed to easily fit through standard doorways. Wide
rack design allows for additional space beside the vertical mounting rails for
passing cabling from front-to-back in the enclosure. Width is ideal for
converged and hyperconverged IT which include a mix of server, storage, and
network switches all in one rack. 48U height allows for an additional 6U of rack
mounting space maximizing u-space per rack footprint.
Specifications
Physical |
Colour |
Black |
Height |
225.8
cm |
width |
75
cm |
Depth |
107
cm |
Net
weight |
169.09
kg |
mounting
preference |
No
preference |
mounting
mode |
Not
rack-mountable |
Maximum
mounting depth |
91.49
cm |
Minimum
mounting depth |
26.19
cm |
Rack
width |
19" |
marking |
14
gauge EIA mounting rail |
16
gauge front door |
16
gauge post |
16
gauge rear door |
18
gauge roof |
18
gauge side panels |
permanent
permissible load |
1020.58
kg dynamic |
1700.97
kg static |
Conformance |
Standards |
UL
2416 |
UL
60950-1 |
EIA-310E |
Packing
Units |
Package
1 Height |
238.4
cm |
Package
1 Width |
85.1
cm |
Package
1 Length |
115.6
cm |
Package
1 Weight |
184.09
kg |
Unit
Type of Package 2 |
CAR |
Number
of Units in Package 2 |
1 |
Package
2 Height |
240.03
cm |
Package
2 Width |
89.53
cm |
Package
2 Length |
121.92
cm |
Package
2 Weight |
194
kg |
Unit
Type of Package 3 |
PAL |
Number
of Units in Package 3 |
1 |
Package
3 Height |
143.99
cm |
Package
3 Width |
86
cm |
Package
3 Length |
11.6
cm |
Package
3 Weight |
194
kg |
Contractual
warranty |
Warranty |
5
year repair or replace |
