HOME / Back -> Networking - Wireless -> Antennas -> Hewlett Packard Enterprise

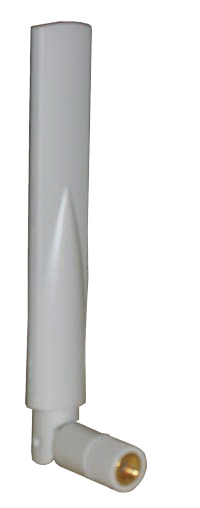

Hewlett Packard Enterprise AP-ANT-1W network antenna Omni-directional antenna RP-SMA 5.8 dBi, AP-ANT-1W, 2.4-2.5/4.9-5.875 GHz, 3.8/5.8 dBi, 50 ohms

IMG 1 of 1
Our Price:
$50.90
RRP:
$66.00
You Save:
$15.10
or quickly purchase this product
Backorder
Part Number:
523855
(?) Brand:
Hewlett Packard Enterprise
Manuf No:
JW009A
Shipping Weight:
0.02 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
JW009A, 3431551, 0190017019093, 190017019093

Hewlett Packard Enterprise AP-ANT-1W network antenna Omni-directional antenna RP-SMA 5.8 dBi

Manufacturer: Hewlett Packard Enterprise
Category: Networking
Sub-Category: Network Antennas
SKU: JW009A
EAN: 0190017019093

Description

The AP-ANT-1 is a high-performance, tri-band, omnidirectional, indoor antenna ideally designed for multifunction access points that require an omnidirectional coverage pattern for WLAN service delivery or air monitoring on both the 2.4 GHz and 5 GHz bands. AP-ANT-1 has an articulating mount, providing flexibility in deployment and direct connection to Aruba access points with an onboard RP-SMA connector. The AP-ANT-1 is the preferred choice for multi-purpose service deployment or wireless intrusion prevention (WIP). It is offered in two colors to match the colors of Aruba indoor access points: the AP-ANT-1B antenna in off-white, and the AP-ANT-1W antenna in white.

Specifications

Performance
Antenna gain level (max)5.8 dBi
Frequency band2.4-2.5/4.9-5.875 GHz
Impedance50 Ω
Antenna gain (5 GHz)5.8 dBi
Antenna gain (2.4 GHz)3.8 dBi
Features
Ultraviolet (UV) resistantYes
Housing materialAcrylonitrile butadiene styrene (ABS)
Antenna gain level (max)5.8 dBi
Frequency band2.4-2.5/4.9-5.875 GHz
Antenna typeOmni-directional antenna
Voltage Standing Wave Ratio (VSWR)<2.0:1
PurposeIndoor
PolarizationLinear polarization
Impedance50 Ω
Antenna gain (5 GHz)5.8 dBi
Antenna gain (2.4 GHz)3.8 dBi
Antenna connector typeRP-SMA
Product colourWhite
Power
Power consumption (max)2 W
Technical details
Harmonized System (HS) code85177100
Operational conditions
Operating temperature (T-T)-10 - 55 °C
Weight & dimensions
Width19 mm
Depth39 mm
Height127 mm

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
