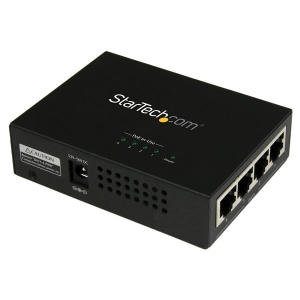

POEINJ4G | StarTech.com 4-Port Gigabit Midspan - PoE+ Injector - 802.3at/af

Performance
Duplex system	Full
Plug and Play	Yes
Type	Network transmitter
Maximum transfer distance	100 m
Power over Ethernet (PoE)	Yes
Data transfer rate	2000 Mbit/s
Mean time between failures (MTBF)	50000 h
Auto MDIX IEEE	Yes
Auto-negotiation	Yes
Technical details
Duplex system	Full
Plug and Play	Yes
Type	Network transmitter
Maximum transfer distance	100 m
Power over Ethernet (PoE)	Yes
Data transfer rate	2000 Mbit/s
LED indicators	PoE, Power
Auto MDIX IEEE	Yes
Auto-negotiation	Yes
Sustainability certificates	RoHS
Harmonized System (HS) code	85176990
Network
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Ports & interfaces
Power over Ethernet (PoE) ports quantity	4
DC-in jack	Yes
Ethernet LAN (RJ-45) ports	8
Design
Housing material	Steel
Certification	CE, FCC
LED indicators	PoE, Power
Product colour	Black
Power
Power consumption (max)	120 W
Power plug type	Type M
Power over Ethernet (PoE)	Yes
AC input voltage	100-240 V
Output voltage	52 V
Output current	2.31 A
Operational conditions
Operating temperature (T-T)	0 - 50  Â°C
Storage temperature (T-T)	-10 - 70  Â°C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	70 mm
Depth	94 mm
Height	26 mm
Weight	204 g
Colour
Product colour	Black
Endurance
Mean time between failures (MTBF)	50000 h
Certificates
Certification	CE, FCC
Packaging content
AC adapter included	Yes
Manual	Yes
Cables included	AC
Packaging data
Package width	180 mm
Package depth	305 mm
Package height	90 mm
Package weight	1.63 kg

---

This Gigabit midspan PoE+ injector is a cost-effective alternative to upgrading your existing network switch to a PoE-capable model. It supplies up to 30 Watts output to each port, so you can easily power and access up to four high-power PoE-compliant devices – such as IP cameras – using standard Ethernet cable.
More power, with less cost and hassle This versatile midspan PoE+ injector is suited for almost all PoE device classes, including wireless access points, as well as IP phones and cameras. The high-power PoE+ injector offers 120W total power distribution and delivers full power – up to 30.8W – from each port. Now, you can easily scale and power your PoE+ devices across long distances, even in remote locations where a typical power outlet is unavailable. Plus, the cost-effective Power over Ethernet+ injector lets you connect your PoE-powered devices (PDs) to a non-PoE-capable switch, avoiding the expense and aggravation of upgrading your existing switch to a PoE-enabled model.
Easy to set up in mixed environments This injector is the perfect solution for a variety of environments. It features a wall-mountable rugged metal casing, but is palm-sized making it perfect for desktop placement too. With plug-and-play operation, you can enjoy fast and hassle-free setup without disrupting your workflow.
Convenient, protected connections Not sure which class your PoE devices are? The Gigabit midspan PoE+ injector automatically detects the power requirements of your PoE PDs, and delivers the appropriate level of power without damaging your devices. With integrated circuit protection between each port, your devices are also protected from power interference. The POEINJ4G is backed by a StarTech.com 2-year warranty and free lifetime technical support.
